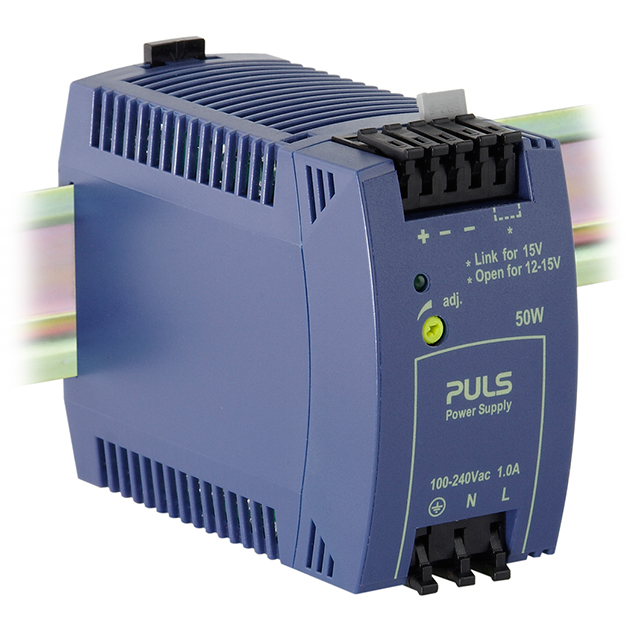

ML50.102

Manufacturer :

PULS

Product Category :

Type :

Enclosed

Total Power Output-Max :

50W

RoHS Status :

RoHS Compliant

Trim/Adjustable Output :

yes

Max Output Voltage :

15V

Terminal Form :

UNSPECIFIED

Weight :

260g

Series :

MiniLine (50W)

Max Input Voltage :

240V

Power (Watts) :

50W

Efficiency :

90%

Feature :

Adjustable Output, DC Input Capable, Load Sharing, Universal Input

Output Voltage :

12V

Depth :

75mm

Number of Functions :

1

Current - Output 1 :

4.2A

Size / Dimension :

3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm

Factory Lead Time :

2 Weeks

Min Output Voltage :

12V

Applications :

ITE (Commercial)

Mount :

DIN Rail

Moisture Sensitivity Level (MSL) :

Not Applicable

Input Voltage-Nom :

196V

Mounting Type :

DIN Rail

Voltage - Input :

85V~264VAC

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Outputs :

1

Terminal Position :

UNSPECIFIED

Min Input Voltage :

100V

Number of Terminations :

9

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Operating Temperature :

0°C~70°C With Derating

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-PXMA-X9

Pbfree Code :

yes
