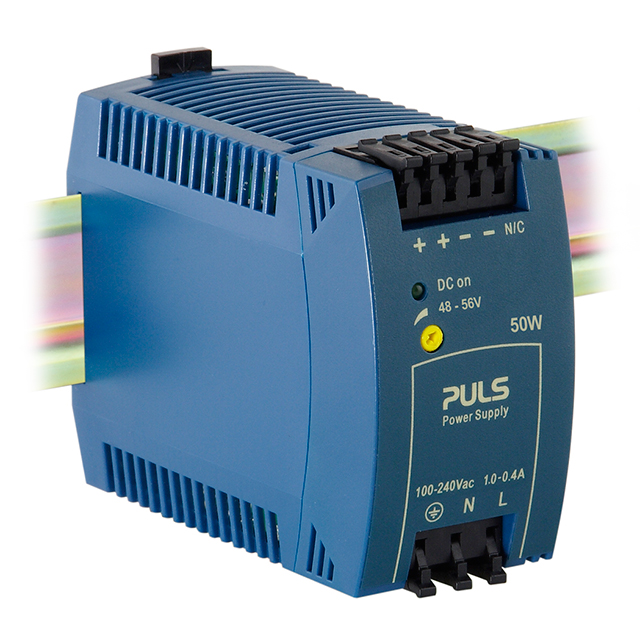

ML50.105

Manufacturer :

PULS

Product Category :

Power (Watts) :

50W

Mount :

DIN Rail

Current - Output 1 :

1.05A

JESD-30 Code :

R-XXMA-X9

RoHS Status :

RoHS Compliant

Approval Agency :

CB, CE, cULus, cURus

Trim/Adjustable Output :

yes

Total Power Output-Max :

50W

Mounting Type :

DIN Rail

Depth :

75mm

Type :

Enclosed

Input Voltage-Nom :

100V

Operating Temperature :

0°C~70°C With Derating

Terminal Form :

UNSPECIFIED

Weight :

240g

Factory Lead Time :

2 Weeks

Output Voltage :

48V

Voltage - Input :

85V~264VAC

Applications :

ITE (Commercial)

Size / Dimension :

3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm

Min Output Voltage :

48V

Output Current :

900mA

Max Input Voltage :

240V

Efficiency :

90.3%

Max Output Voltage :

56V

Number of Terminations :

9

Moisture Sensitivity Level (MSL) :

Not Applicable

Feature :

Adjustable Output, DC Input Capable, Load Sharing, Universal Input

Number of Outputs :

1

Min Input Voltage :

100V

Series :

MiniLine (50W)

Terminal Position :

UNSPECIFIED

Number of Functions :

1

Pbfree Code :

yes
