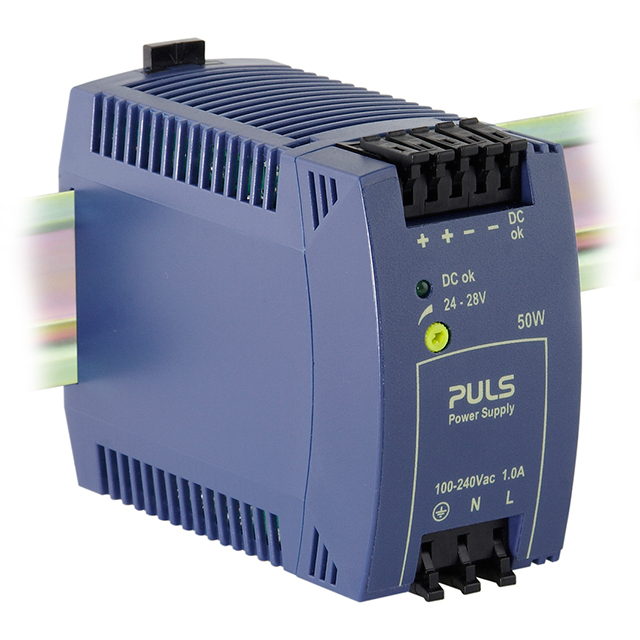

ML50.100

Manufacturer :

PULS

Product Category :

Output Current :

2.1A

Power (Watts) :

50W

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mount :

DIN Rail

JESD-30 Code :

R-XXMA-X8

Weight :

240g

Min Input Voltage :

100V

Number of Outputs :

1

Number of Functions :

1

RoHS Status :

RoHS Compliant

Total Power Output-Max :

50W

Efficiency :

89%

Moisture Sensitivity Level (MSL) :

Not Applicable

Current - Output 1 :

2.1A

Depth :

75mm

Series :

MiniLine (50W)

Output Voltage :

24V

Applications :

ITE (Commercial)

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Package / Case :

100

Terminal Position :

UNSPECIFIED

Input Voltage-Nom :

100V

Terminal Form :

UNSPECIFIED

Factory Lead Time :

2 Weeks

Voltage - Isolation :

500V

Voltage - Input :

85V~264VAC

Number of Terminations :

8

Size / Dimension :

3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm

Additional Feature :

ALSO OPERATES IN 85 TO 375VDC, 60 TO 85VAC AND 264 TO 300VAC

Type :

Enclosed

Max Input Voltage :

240V

Feature :

Adjustable Output, DC Input Capable, Load Sharing, Universal Input

ECCN Code :

EAR99

Min Output Voltage :

24V

Operating Temperature :

0°C~70°C With Derating

Mounting Type :

DIN Rail

Max Output Voltage :

28V

Trim/Adjustable Output :

yes
