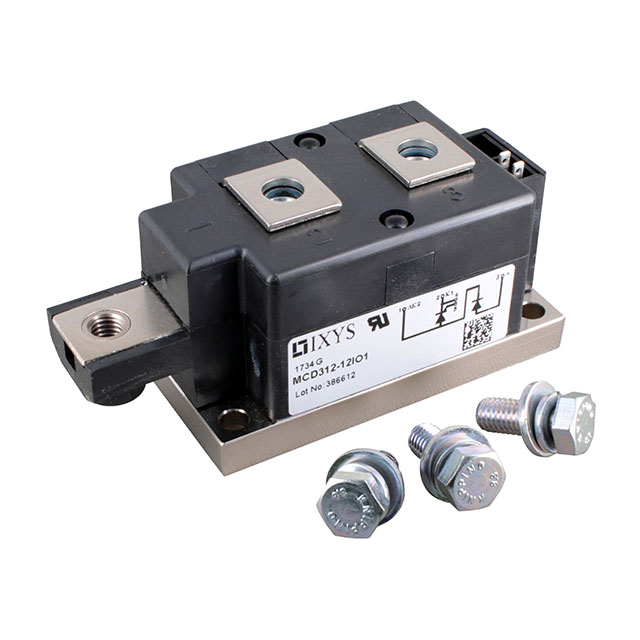

MCD312-12IO1
- Mfr.Part #
- MCD312-12IO1
- Manufacturer
- Littelfuse
- Package / Case
- Y1-CU
- Datasheet
- Download
- Description
- MOD THYRISTOR/DIODE 1200V Y1-CU
- Stock
- 3
- In Stock :
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Thyristors - SCRs - Modules
- Hold Current :
- 150mA
- Current - Non Rep. Surge 50, 60Hz (Itsm) :
- 9200A 10100A
- Package / Case :
- Y1-CU
- Factory Lead Time :
- 28 Weeks
- Desc. of Quick-Connects :
- G-GR
- Brand :
- IXYS
- Technology :
- Si
- Max Repetitive Reverse Voltage (Vrrm) :
- 1.2kV
- Current - On State (It (RMS)) (Max) :
- 520A
- RoHS :
- Details
- Repetitive Peak Reverse Voltage :
- 1200 V
- Trigger Device Type :
- SCR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Gate Trigger (Vgt) (Max) :
- 2V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Mounting Style :
- Screw Mount
- Terminal Form :
- UNSPECIFIED
- Number of Pins :
- 5
- JESD-30 Code :
- R-XUFM-X5
- Additional Feature :
- UL RECOGNIZED
- Terminal Position :
- UPPER
- Current - On State (It (AV)) (Max) :
- 320A
- Published :
- 2000
- Max Operating Temperature :
- 140 °C
- Pbfree Code :
- yes
- Package :
- Bulk
- Base Product Number :
- MCD312
- Structure :
- Series Connection - SCR/Diode
- RMS On-state Current-Max :
- 520 A
- DC Gate Trigger Current-Max :
- 150 mA
- Current - Hold (Ih) (Max) :
- 150mA
- Packaging :
- Bulk
- Mounting Type :
- Chassis Mount
- Configuration :
- SINGLE WITH BUILT-IN SERIES DIODE
- Number of SCRs, Diodes :
- 1 SCR, 1 Diode
- Number of Terminals :
- 5
- Holding Current-Max :
- 150 mA
- Width :
- 50mm
- Reach Compliance Code :
- Compliant
- Length :
- 115mm
- Repetitive Peak Off-state Voltage :
- 1200V
- Current - Gate Trigger (Igt) (Max) :
- 150mA
- Product Status :
- Active
- Number of Terminations :
- 5
- Voltage - Off State :
- 1.2kV
- Leakage Current (Max) :
- 40mA
- Height :
- 49mm
- DC Gate Trigger Voltage-Max :
- 2 V
- Product Type :
- Discrete Semiconductor Modules
- Number of Elements :
- 1
- Manufacturer :
- IXYS
- RMS Current (Irms) :
- 520A
- Series :
- --
- On-State Current-Max :
- 320000A
- Qualification Status :
- Not Qualified
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~140°C TJ
- Package Shape :
- RECTANGULAR
- Product :
- Thyristor Power Modules
- Base Part Number :
- MC*312
- Non-Repetitive Pk On-state Cur :
- 9800 A
- Case Connection :
- Isolated
- Desc. of Screw Terminals :
- A-K-AK
- Surface Mount :
- No
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Mount :
- Chassis Mount, Screw
- Min Operating Temperature :
- -40 °C
- Type :
- Thyristor / Diode
- Product Category :
- Discrete Semiconductor Modules
- Datasheets
- MCD312-12IO1
