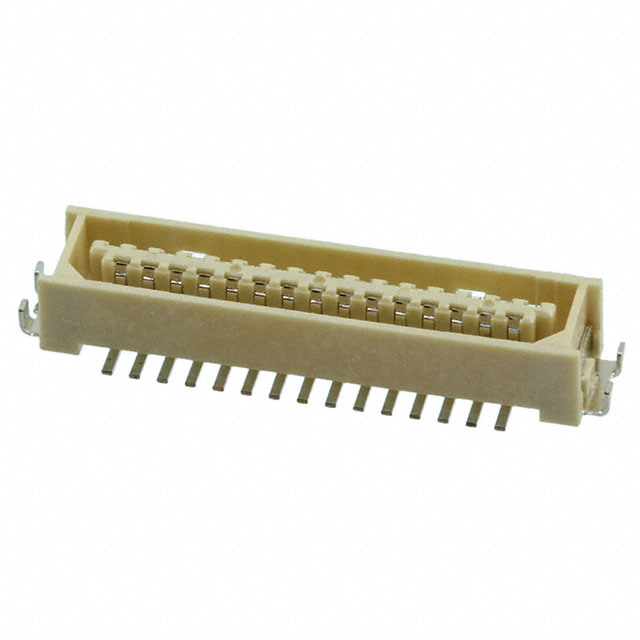

M40-6003146R

Manufacturer :

Harwin

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Packaging :

Tape and Reel (TR)

Min Operating Temperature :

-20°C

Contact Resistance :

50mOhm

Contact Pattern :

STAGGERED

Factory Lead Time :

13 Weeks

HTS Code :

8536.69.40.40

Orientation :

Straight

Additional Feature :

RoHS Compliant

PCB Contact Pattern :

STAGGERED

Max Operating Temperature :

125°C

Rated Current (Signal) :

0.5A

Contact Finish :

Tin

Filter Feature :

No

Pitch :

0.039 1.00mm

Mixed Contacts :

No

Max Voltage Rating (AC) :

150V

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

IEC Conformance :

No

Mount :

Surface Mount

Connector Type :

Plug, Center Strip Contacts

Insulation Resistance :

500000000Ohm

Termination :

Solder

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Height Above Board :

0.130 3.30mm

Series :

M40

Durability :

30 Cycles

Gender :

Male

Pbfree Code :

yes

Reference Standard :

UL

ECCN Code :

EAR99

JESD-609 Code :

e3

Total Number of Contacts :

31

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

5.6mm

Number Of PCB Rows :

2

Published :

2013

Body Breadth :

0.165 inch

Insulator Color :

Natural

MIL Conformance :

No

Length :

21.1mm

DIN Conformance :

No

Contact Finish Thickness :

80.0μin 2.03μm

Feature :

Board Guide, Solder Retention

Stack Height (Mating) :

4.3mm

Number of Positions :

31

Housing Material :

Thermoplastic

Number of Rows :

2

Contact Material :

Bronze

Radiation Hardening :

No

Number of Conductors :

ONE
