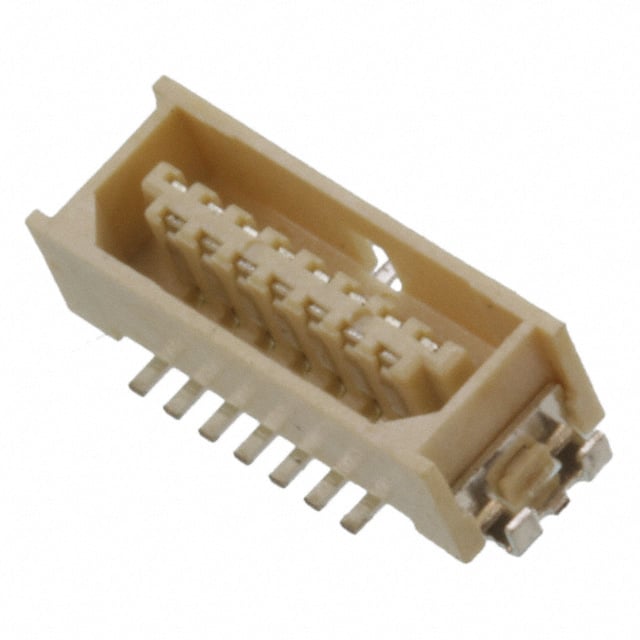

M40-6001546

Manufacturer :

Harwin

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Style :

CENTRONIC

Termination :

Solder

Contact Material :

Bronze

Contact Pattern :

STAGGERED

Voltage - Rated :

100V

Housing Material :

Thermoplastic

Plating Thickness :

80μin

Series :

M40

RoHS Status :

ROHS3 Compliant

Number Of PCB Rows :

2

Number of Conductors :

ONE

Length :

13.1mm

IEC Conformance :

No

Mount :

Surface Mount

Packaging :

Tube

Factory Lead Time :

12 Weeks

Feature :

Board Guide, Solder Retention

Connector Type :

Plug, Center Strip Contacts

Rated Current (Signal) :

0.5A

Min Operating Temperature :

-20°C

Number of Rows :

2

Insulator Color :

Natural

Published :

2006

Option :

GENERAL PURPOSE

MIL Conformance :

No

Orientation :

Straight

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Lead Pitch :

1mm

Width :

10.1mm

Pbfree Code :

yes

PCB Contact Pattern :

STAGGERED

Contact Finish Thickness :

80.0μin 2.03μm

Current Rating :

500mA

Stack Height (Mating) :

4.3mm

Polarization Key :

POLARIZED HOUSING

Number of Positions :

15

Body Breadth :

0.165 inch

Reference Standard :

UL

Radiation Hardening :

No

Depth :

5.6mm

Voltage - Rated AC :

100V

Total Number of Contacts :

15

PCB Contact Row Spacing :

3.9116 mm

UL Flammability Code :

94V-0

Max Operating Temperature :

125°C

Pitch :

0.039 1.00mm

Durability :

30 Cycles

REACH SVHC :

No SVHC

Height Above Board :

0.130 3.30mm

Contact Finish :

Tin

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

500MOhm

Mixed Contacts :

No

Contact Resistance :

50mOhm

Gender :

Male

Max Voltage Rating (AC) :

150V

Insulation Material :

Nylon

Additional Feature :

POLARISED

Filter Feature :

No

DIN Conformance :

No
