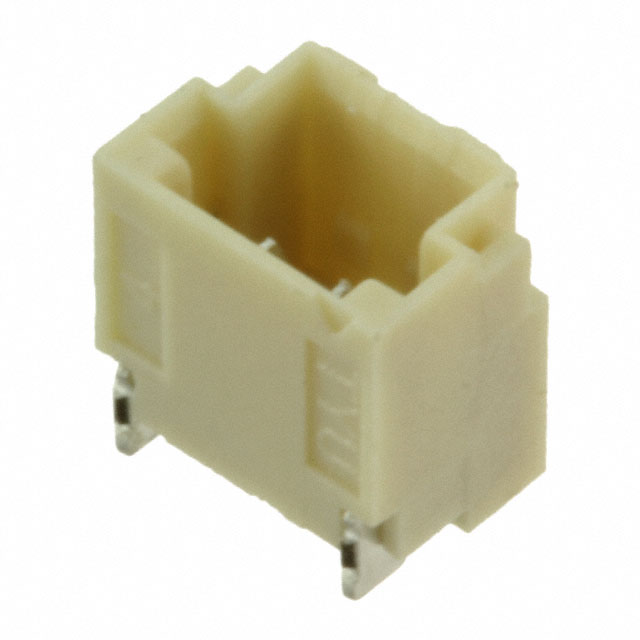

M40-3010246

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Additional Feature :

Top Entry

Current Rating :

1A

Mounting Type :

Surface Mount

DIN Conformance :

No

Mixed Contacts :

No

Connector Type :

Header

Contact Shape :

RECTANGULAR

Published :

2005

Voltage - Rated AC :

50V

Contact Material :

Phosphor Bronze

Length :

4mm

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Packaging :

Bulk

Max Voltage Rating (AC) :

50V

Operating Temperature :

-25°C~85°C

Weight :

79.010121mg

Feature :

Pick and Place, Solder Retention

Total Number of Contacts :

2

Number of Rows :

1

Contact Type :

Male Pin

Orientation :

Straight

Material :

Thermoplastic

Insulation Material :

Polyamide (PA9T), Nylon 9T

Insulation Resistance :

100MOhm

Package / Case :

SIL

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Mount :

PCB, Surface Mount

Insulation Color :

Natural

Factory Lead Time :

13 Weeks

Termination :

Solder

Contact Finish - Mating :

Tin

Number of Positions Loaded :

All

Contact Resistance :

30mOhm

Filter Feature :

No

Series :

M40

RoHS Status :

ROHS3 Compliant

Shrouding :

Shrouded - 4 Wall

Housing Material :

Nylon

IEC Conformance :

No

Max Current Rating :

1A

Radiation Hardening :

No

Number of Positions :

2

Pitch - Mating :

0.039 1.00mm

Flammability Rating :

UL94 V-0

Gender :

Male

Style :

Board to Cable/Wire

Insulation Height :

0.169 4.30mm

Fastening Type :

Detent Lock

Depth :

2.9mm

Material Flammability Rating :

UL94 V-0
