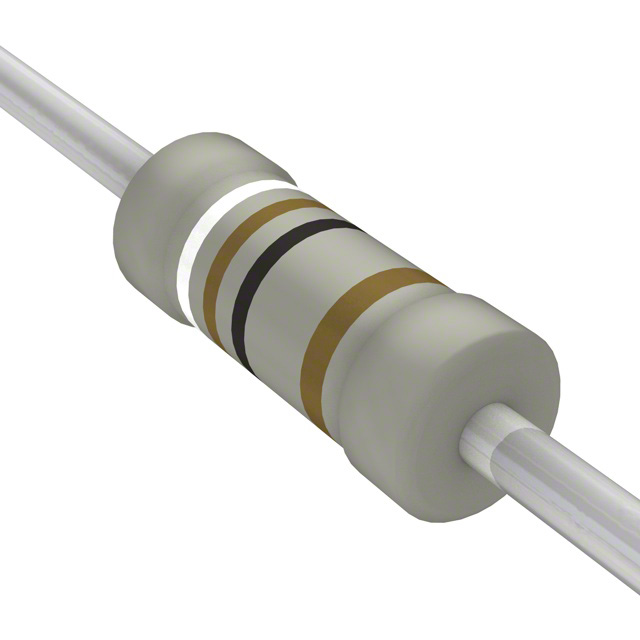

LR1F91R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Rated Power Dissipation (P) :

0.6 W

ECCN Code :

EAR99

Tolerance (+ or -) :

1%

Power (Watts) :

0.6W

Lead Spacing (nom) :

Not Required(mm)

Power Rating :

0.6 W

Product Width :

-

Factory Lead Time :

15 Weeks, 6 Days

Product Length (mm) :

6.2(mm)

Terminal Finish :

Tin (Sn)

Product Diameter (mm) :

2.3(mm)

Termination Style :

Axial

Number of Terminations :

2

Mounting Style :

PCB Mount

Resistance Tolerance :

1

Rated Temperature :

70 °C

Minimum Operating Temperature :

-55°C

Product Depth (mm) :

Not Required(mm)

Lead Diameter :

0.55 mm

JESD-609 Code :

e3

Type :

Thin Film

Failure Rate :

Not Required

Resistance :

91 Ω

Flame-Proof Support :

No

Voltage Rating :

350V

Package / Case :

Axial

Package Length :

6.2 mm

Temperature Coefficient :

50 ppm/°C

Additional Feature :

PRECISION

Number of Terminals :

2

RoHS :

Details

Features :

--

Composition :

Metal Film

Diameter :

2.3 mm

Reach Compliance Code :

Compliant

Product Category :

Metal Film Resistors - Through Hole

Working Voltage :

350 V

Package Shape :

TUBULAR PACKAGE

Qualification :

-

Height - Seated (Max) :

--

Construction :

Tubular

Tolerance :

1%

Product Status :

Active

Pbfree Code :

yes

Temperature Range @ Derated Power :

70 to 125

Military Standard :

Not Required

Maximum Operating Temperature :

+155°C

Case Style :

Conformal Coated

Power Rating(s) :

0.6(W)

Surface Mount :

No

Packaging :

Ammo

Product Length :

6.2

Terminal Shape :

Wire

Brand :

TE Connectivity / AMP

Operating Temperature :

-55°C ~ 155°C

Resistor Type :

FIXED RESISTOR

Base Product Number :

LR1F

Length :

6.2 mm

Supplier Device Package :

Axial

Product Height (mm) :

Not Required(mm)

Product :

Metal Film Resistors General Purpose

Series :

LR, Neohm

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Mounting Feature :

THROUGH HOLE MOUNT

Packing Method :

Ammo Pack

Product Type :

Metal Film Resistors

Operating Temp Range :

-55C to 155C

Package :

Tape and Box (TB)
