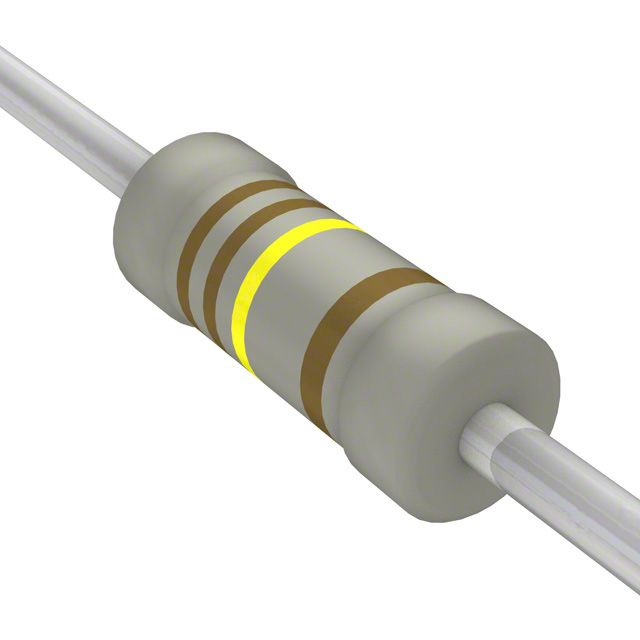

LR1F110K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Series :

LR, Neohm

Manufacturer :

TE Connectivity

JESD-609 Code :

e3

Features :

--

Lead Diameter :

0.55 mm

Supplier Device Package :

Axial

Product Width :

-

Factory Lead Time :

15 Weeks, 6 Days

Terminal Shape :

Wire

Product Diameter (mm) :

2.3(mm)

Brand :

TE Connectivity / Holsworthy

Number of Terminations :

2

Terminal Finish :

Tin (Sn)

Package :

Tape and Box (TB)

RoHS :

Details

Operating Temp Range :

-55C to 155C

Package Length :

6.2 mm

Tolerance (+ or -) :

1%

Technology :

Metal Film

Diameter :

2.3 mm

Rated Temperature :

70 °C

Composition :

Metal Film

Pbfree Code :

yes

Product Depth (mm) :

Not Required(mm)

Packaging :

Tape and Box (TB)

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Rated Power Dissipation (P) :

0.6 W

Surface Mount :

No

Minimum Operating Temperature :

- 55 C

Temperature Range @ Derated Power :

70 to 125

Product Status :

Active

Additional Feature :

PRECISION

Reach Compliance Code :

Compliant

Lead Spacing (nom) :

Not Required(mm)

Resistance Tolerance :

1

Resistance :

110 kOhm

Packing Method :

Ammo Pack

Package / Case :

Axial

Power Rating :

0.6 W

Case Style :

Conformal Coated

ECCN Code :

EAR99

Mounting Style :

PCB Mount

Package Shape :

TUBULAR PACKAGE

Product Length :

6.2

Subcategory :

Resistors

Mounting Feature :

THROUGH HOLE MOUNT

Number of Terminals :

2

Product Type :

Metal Film Resistors

Base Product Number :

LR1F

Product Length (mm) :

6.2(mm)

Termination Style :

Axial

Type :

Metal Film

Temperature Coefficient :

50.0000 ppm/°C

Length :

6.2 mm

Tolerance :

±1%

Height - Seated (Max) :

--

Power Rating(s) :

0.6(W)

Maximum Operating Temperature :

+ 155 C

Flame-Proof Support :

No

Product Height (mm) :

Not Required(mm)

Voltage Rating :

350V

Failure Rate :

--

Qualification :

-

Military Standard :

Not Required

Product :

Metal Film Resistors General Purpose

Power (Watts) :

0.6W

Construction :

Cylindrical

Resistor Type :

GENERAL PURPOSE

Product Category :

Metal Film Resistors - Through Hole

Working Voltage :

350 V

Operating Temperature :

-55°C ~ 155°C
