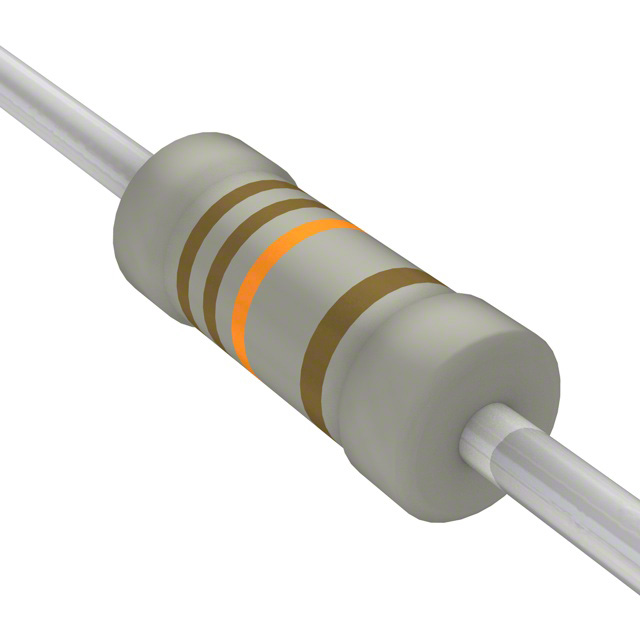

LR1F11K

Share

Or copy the link below:

Mfr.Part #
LR1F11K
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Axial
Datasheet
Download
Description
RES 11K OHM 1% 0.6W AXIAL
Stock
32,726
In Stock :
32,726

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Through Hole Resistors
Flame-Proof Support :
No
Resistance Tolerance :
1
Brand :
TE Connectivity / Holsworthy
Surface Mount :
No
Mounting Style :
PCB Mount
Rated Power Dissipation (P) :
0.6 W
Mounting Feature :
THROUGH HOLE MOUNT
Working Voltage :
350 V
Factory Lead Time :
15 Weeks, 6 Days
Number of Terminals :
2
Operating Temperature :
-55°C ~ 155°C
Product Type :
Metal Film Resistors
Package Shape :
TUBULAR PACKAGE
Product Status :
Active
Manufacturer :
TE Connectivity
JESD-609 Code :
e3
RoHS :
Details
Tolerance :
±1%
Packaging :
Tape and Box (TB)
Pbfree Code :
yes
Temperature Coefficient :
50.0000 ppm/°C
Product Height (mm) :
Not Required(mm)
Subcategory :
Resistors
Failure Rate :
--
Terminal Shape :
Wire
Additional Feature :
PRECISION
Temperature Range @ Derated Power :
70 to 125
Size / Dimension :
0.091 Dia x 0.244 L (2.30mm x 6.20mm)
Power Rating :
0.6 W
Diameter :
2.3 mm
Features :
--
Operating Temp Range :
-55C to 155C
Product :
Metal Film Resistors General Purpose
Product Category :
Metal Film Resistors - Through Hole
Resistor Type :
GENERAL PURPOSE
Reach Compliance Code :
Compliant
Technology :
Metal Film
Product Diameter (mm) :
2.3(mm)
Voltage Rating :
350 V
Lead Spacing (nom) :
Not Required(mm)
Construction :
Cylindrical
Supplier Device Package :
Axial
Package :
Tape and Box (TB)
Package Length :
6.2 mm
Power Rating(s) :
0.6(W)
Product Length (mm) :
6.2(mm)
Lead Diameter :
0.55 mm
Resistance :
11 kOhm
Power (Watts) :
0.6W
Length :
6.2 mm
Packing Method :
Ammo Pack
Type :
Metal Film
Termination Style :
Axial
Package / Case :
Axial
Qualification :
-
Product Width :
-
Height - Seated (Max) :
--
Military Standard :
Not Required
Product Depth (mm) :
Not Required(mm)
Case Style :
Conformal Coated
Tolerance (+ or -) :
1%
Series :
LR, Neohm
ECCN Code :
EAR99
Product Length :
6.2
Number of Terminations :
2
Maximum Operating Temperature :
+155°C
Terminal Finish :
Tin (Sn)
Rated Temperature :
70 °C
Minimum Operating Temperature :
-55°C
Composition :
Metal Film
Datasheets
LR1F11K
Introducing Through Hole Resistors TE Connectivity AMP Connectors LR1F11K from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C ~ 155°C, Type:Metal Film, Package / Case:Axial, Number of Terminations:2, LR1F11K pinout, LR1F11K datasheet PDF, LR1F11K amp .Beyond Through Hole Resistors TE Connectivity AMP Connectors LR1F11K ,we also offer AC03000002209JACCS, AC03000001000JACCS, AC03000001000JAC00, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors LR1F11K


General Purpose, 11 kOhm, 0.6W, Metal Film,
