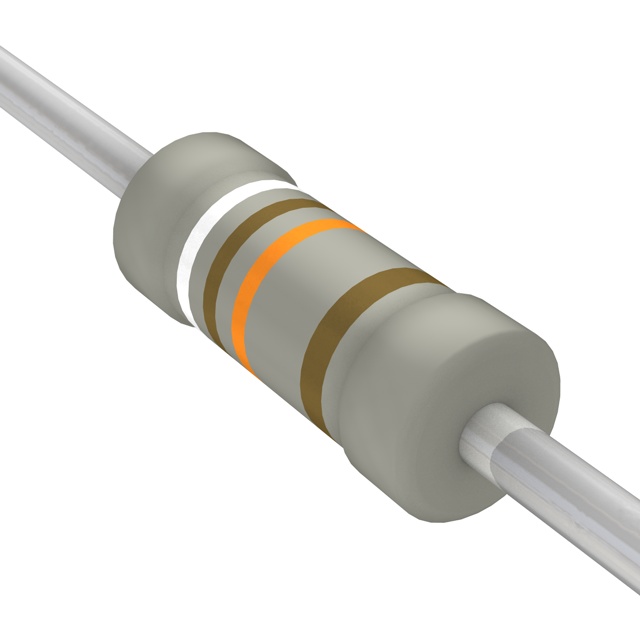

LR1F91K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Packing Method :

Ammo Pack

Resistance Tolerance :

1

Construction :

Cylindrical

Packaging :

Tape and Box (TB)

Product Diameter (mm) :

2.3(mm)

Brand :

TE Connectivity / Holsworthy

Package / Case :

Axial

Minimum Operating Temperature :

- 55 C

Power Rating(s) :

0.6(W)

Rated Temperature :

70 °C

Working Voltage :

350 V

Pbfree Code :

yes

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Product Length :

6.2

Subcategory :

Resistors

Height - Seated (Max) :

--

Temperature Range @ Derated Power :

70 to 125

Diameter :

2.3 mm

ECCN Code :

EAR99

Failure Rate :

--

Package Length :

6.2 mm

Rated Power Dissipation (P) :

0.6 W

Number of Terminals :

2

Lead Spacing (nom) :

Not Required(mm)

Length :

6.2 mm

Operating Temp Range :

-55C to 155C

Maximum Operating Temperature :

+ 155 C

Termination Style :

Axial

Temperature Coefficient :

50.0000 ppm/°C

Operating Temperature :

-55°C ~ 155°C

Product Height (mm) :

Not Required(mm)

Package :

Tape and Box (TB)

Series :

LR, Neohm

Resistance :

91 kOhm

Tolerance (+ or -) :

1%

Reach Compliance Code :

Compliant

Lead Diameter :

0.55 mm

Terminal Finish :

Tin (Sn)

RoHS :

Details

Case Style :

Conformal Coated

Power (Watts) :

0.6W

Product Length (mm) :

6.2(mm)

Product Type :

Metal Film Resistors

Tolerance :

±1%

Additional Feature :

PRECISION

Flame-Proof Support :

No

Military Standard :

Not Required

Manufacturer :

TE Connectivity

Number of Terminations :

2

Package Shape :

TUBULAR PACKAGE

Product Depth (mm) :

Not Required(mm)

Features :

--

Composition :

Metal Film

Product :

Metal Film Resistors General Purpose

Voltage Rating :

350V

Power Rating :

0.6 W

Mounting Style :

PCB Mount

Product Width :

-

Surface Mount :

No

Product Status :

Active

Qualification :

-

Terminal Shape :

Wire

Type :

Metal Film

Base Product Number :

LR1F

Technology :

Metal Film

Product Category :

Metal Film Resistors - Through Hole

Factory Lead Time :

15 Weeks, 6 Days

Mounting Feature :

THROUGH HOLE MOUNT

JESD-609 Code :

e3

Resistor Type :

GENERAL PURPOSE

Supplier Device Package :

Axial
