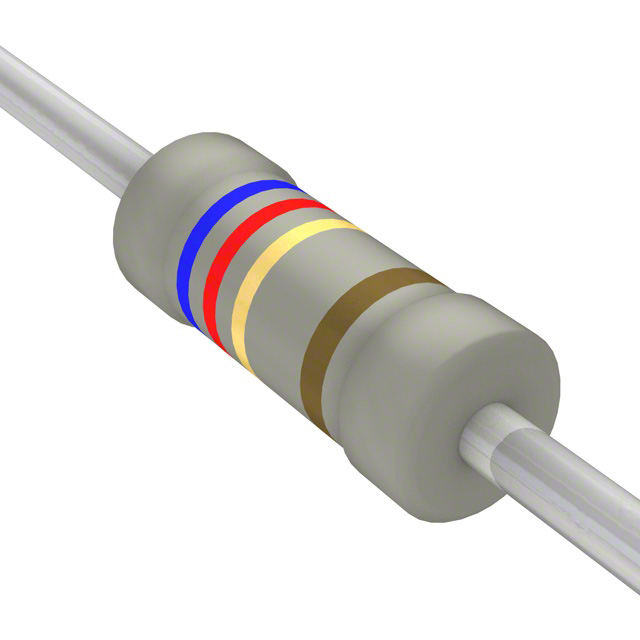

LR1F6R2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Package / Case :

Axial

Product Length (mm) :

6.2(mm)

Minimum Operating Temperature :

- 55 C

Composition :

Metal Film

Product Category :

Metal Film Resistors - Through Hole

Flame-Proof Support :

No

Supplier Device Package :

Axial

Military Standard :

Not Required

Pbfree Code :

yes

Working Voltage :

350 V

Number of Terminations :

2

Rated Power Dissipation (P) :

0.6 W

Package :

Tape and Box (TB)

Length :

6.2 mm

Terminal Shape :

Wire

Technology :

Metal Film

Package Shape :

TUBULAR PACKAGE

Surface Mount :

No

Product :

Metal Film Resistors General Purpose

Product Width :

-

Product Diameter (mm) :

2.3(mm)

ECCN Code :

EAR99

Features :

--

Termination Style :

Axial

Product Type :

Metal Film Resistors

Terminal Finish :

Tin (Sn)

Factory Lead Time :

15 Weeks, 6 Days

Failure Rate :

Not Required

Maximum Operating Temperature :

+ 155 C

Packing Method :

Ammo Pack

Case Style :

Conformal Coated

Mounting Style :

PCB Mount

Series :

LR, Neohm

Temperature Range @ Derated Power :

70 to 125

Product Height (mm) :

Not Required(mm)

Qualification :

-

Number of Terminals :

2

Reach Compliance Code :

Compliant

Resistance Tolerance :

1

Packaging :

Ammo

Diameter :

2.3 mm

Tolerance :

±1%

Tolerance (+ or -) :

1%

Operating Temperature :

-55°C ~ 155°C

Additional Feature :

PRECISION

RoHS :

Details

Power Rating :

0.6 W

Manufacturer :

TE Connectivity

Resistance :

6.2 Ohm

Base Product Number :

LR1F

Mounting Feature :

THROUGH HOLE MOUNT

Power Rating(s) :

0.6(W)

Product Depth (mm) :

Not Required(mm)

Height - Seated (Max) :

--

Lead Spacing (nom) :

Not Required(mm)

Lead Diameter :

0.55 mm

Power (Watts) :

0.6W

Rated Temperature :

70 °C

JESD-609 Code :

e3

Voltage Rating :

350 V

Brand :

TE Connectivity / Holsworthy

Construction :

Cylindrical

Product Length :

6.2

Temperature Coefficient :

100.0000 ppm/°C

Operating Temp Range :

-55C to 155C

Type :

Metal Film

Product Status :

Active

Subcategory :

Resistors

Package Length :

6.2 mm

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Resistor Type :

GENERAL PURPOSE
