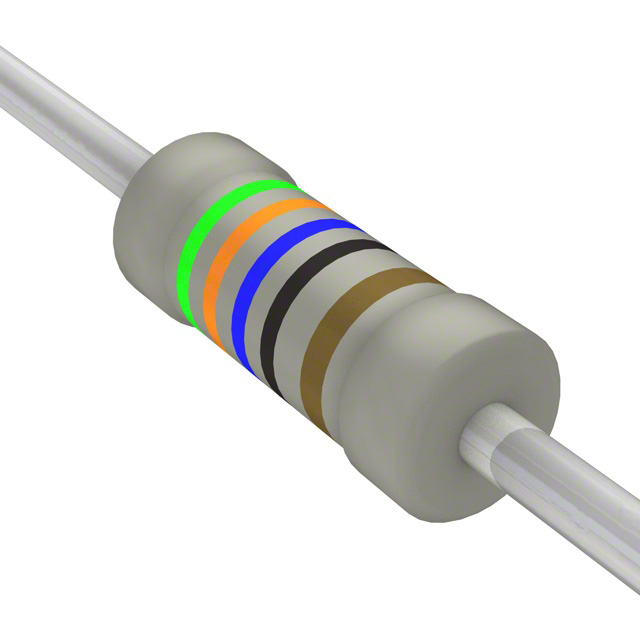

LR1F536R
Or copy the link below:
- Mfr.Part #
- LR1F536R
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Axial
- Datasheet
- Download
- Description
- RES 536 OHM 1% 0.6W AXIAL
- Stock
- 37,486
- In Stock ：
- 37,486
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Through Hole Resistors
- Terminal Finish :
- Tin (Sn)
- Series :
- LR, Neohm
- Voltage - Rated :
- 350V
- ECCN Code :
- EAR99
- Power (Watts) :
- 0.6W
- Packaging :
- Tape and Box (TB)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Terminal Shape :
- Wire
- Packing Method :
- Ammo Pack
- ELV :
- Compliant
- JESD-609 Code :
- e3
- RoHS Status :
- RoHS Compliant
- Composition :
- Metal Film
- Size / Dimension :
- 0.091Diax0.244L 2.30mmx6.20mm
- Number of Terminations :
- 2
- Additional Feature :
- PRECISION
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Temperature Coefficient :
- ±50ppm/°C
- Mount :
- Axial, Through Hole
- Operating Temperature :
- -55°C~155°C
- Pbfree Code :
- yes
- Diameter :
- 2.3mm
- Max Power Dissipation :
- 600mW
- Published :
- 2007
- Rated Power Dissipation (P) :
- 0.6W
- Power Rating :
- 600mW
- Resistor Type :
- FIXED RESISTOR
- Number of Resistors :
- 1
- Tolerance :
- ±1%
- Resistance :
- 536Ohm
- Package / Case :
- Axial
- Factory Lead Time :
- 16 Weeks
- Construction :
- Tubular
- Voltage - Rated DC :
- 350V
- Radiation Hardening :
- No
- Datasheets
- LR1F536R
Axial, Through Hole FIXED RESISTOR, 536Ohm, 0.6W, Metal Film,
