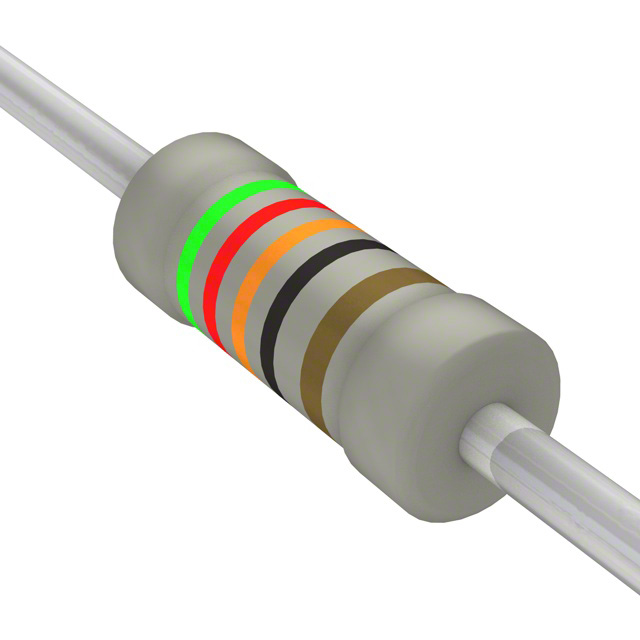

LR1F523R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product Length :

6.2mm

Tolerance :

1%

Package :

Tape and Box (TB)

Terminal Finish :

Tin (Sn)

Termination Style :

Axial

Product Type :

Metal Film Resistors

Supplier Device Package :

Axial

Temperature Coefficient :

50 ppm/°C

Package / Case :

Axial

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Mounting Feature :

THROUGH HOLE MOUNT

Minimum Operating Temperature :

- 55 C

Length :

6.2 mm

Temperature Range @ Derated Power :

70 to 125

Mounting Style :

PCB Mount

Maximum Operating Temperature :

+ 155 C

Resistor Type :

FIXED RESISTOR

Qualification :

-

Reach Compliance Code :

Compliant

Number of Terminations :

2

Product Height (mm) :

Not Required(mm)

Resistance :

523 Ω

Composition :

Metal Film

Power Rating(s) :

0.6(W)

Voltage Rating :

350V

Additional Feature :

PRECISION

Brand :

TE Connectivity / Holsworthy

Package Shape :

TUBULAR PACKAGE

Terminal Shape :

Wire

Lead Diameter :

0.55 mm

Packing Method :

Ammo Pack

ECCN Code :

EAR99

Case Style :

Conformal Coated

Tolerance (+ or -) :

1%

Rated Power Dissipation (P) :

0.6 W

Product Width :

-

Rated Temperature :

70 °C

Features :

--

Power (Watts) :

0.6W

Height - Seated (Max) :

--

Product Depth (mm) :

Not Required(mm)

Flame-Proof Support :

No

Product Diameter (mm) :

2.3(mm)

Type :

Metal Film

Surface Mount :

No

Working Voltage :

350 V

Operating Temp Range :

-55C to 155C

Product Length (mm) :

6.2(mm)

Diameter :

2.3 mm

Series :

LR, Neohm

Resistance Tolerance :

± 1%

Operating Temperature :

-55°C ~ 155°C

Construction :

Tubular

Failure Rate :

Not Required

Base Product Number :

LR1F

Power Rating :

600mW

Packaging :

Ammo

Product Category :

Metal Film Resistors - Through Hole

Lead Spacing (nom) :

Not Required(mm)

JESD-609 Code :

e3

Number of Terminals :

2

Military Standard :

Not Required

Pbfree Code :

yes

Factory Lead Time :

15 Weeks, 6 Days

Product Status :

Active

Package Length :

6.2 mm
