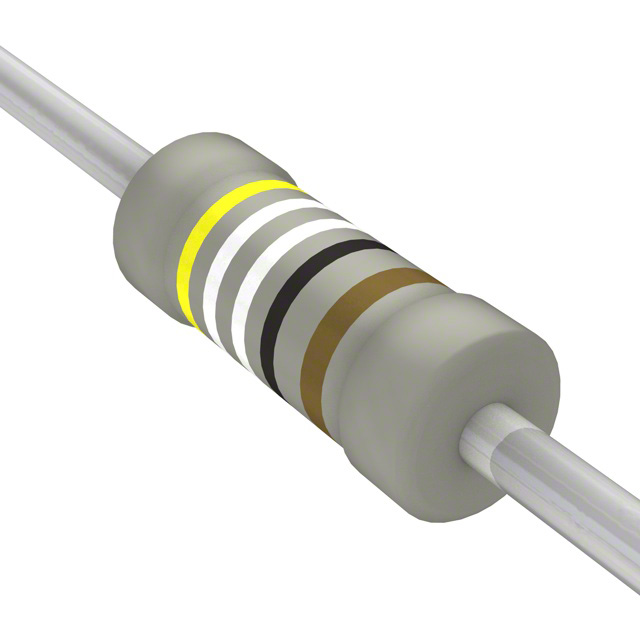

LR1F499R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Subcategory :

Resistors

Mounting Feature :

THROUGH HOLE MOUNT

Minimum Operating Temperature :

- 55 C

Number of Terminals :

2

Voltage Rating :

350V

Product Length (mm) :

6.2(mm)

Lead Diameter :

0.55 mm

Packaging :

Ammo

Factory Lead Time :

15 Weeks, 6 Days

JESD-609 Code :

e3

Additional Feature :

PRECISION

Number of Terminations :

2

Qualification :

-

Reach Compliance Code :

Compliant

Power Rating(s) :

0.6(W)

Packing Method :

Ammo Pack

Diameter :

2.3 mm

Mounting Style :

PCB Mount

Product Width :

-

Product Category :

Metal Film Resistors - Through Hole

Series :

LR, Neohm

Operating Temperature :

-55 to 135 °C

Rated Power Dissipation (P) :

0.6 W

Product :

Metal Film Resistors General Purpose

Pbfree Code :

yes

Power Rating :

600mW

Package / Case :

Axial

Base Product Number :

LR1F

Tolerance :

±1%

Terminal Shape :

Wire

Brand :

TE Connectivity / Holsworthy

Technology :

Metal Film

Maximum Operating Temperature :

+ 155 C

Resistance Tolerance :

± 1%

Power (Watts) :

0.6W

Military Standard :

Not Required

Resistor Type :

GENERAL PURPOSE

Operating Temp Range :

-55C to 155C

Lead Spacing (nom) :

Not Required(mm)

Package :

Tape and Box (TB)

Package Shape :

TUBULAR PACKAGE

Resistance :

499(ohm)

Supplier Device Package :

Axial

Package Length :

6.2 mm

Flame-Proof Support :

No

Temperature Coefficient :

±50(ppm/°C)

Tolerance (+ or -) :

1%

Construction :

Cylindrical

Product Height (mm) :

Not Required(mm)

Manufacturer :

TE Connectivity

Color :

White

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Length :

6.2 mm

Failure Rate :

Not Required

Height - Seated (Max) :

--

Product Length :

6.2mm

Rated Temperature :

70 °C

Product Type :

Metal Film Resistors

Working Voltage :

350 V

Product Status :

Active

Product Depth (mm) :

Not Required(mm)

Terminal Finish :

Tin (Sn)

Surface Mount :

No

Body Material :

PO (Polyolefin)

Case Style :

Conformal Coated

Termination Style :

Axial

ECCN Code :

EAR99

Product Diameter (mm) :

2.3(mm)

Temperature Range @ Derated Power :

70 to 125

Features :

--

RoHS :

Details

Composition :

Metal Film

Type :

Metal Film
