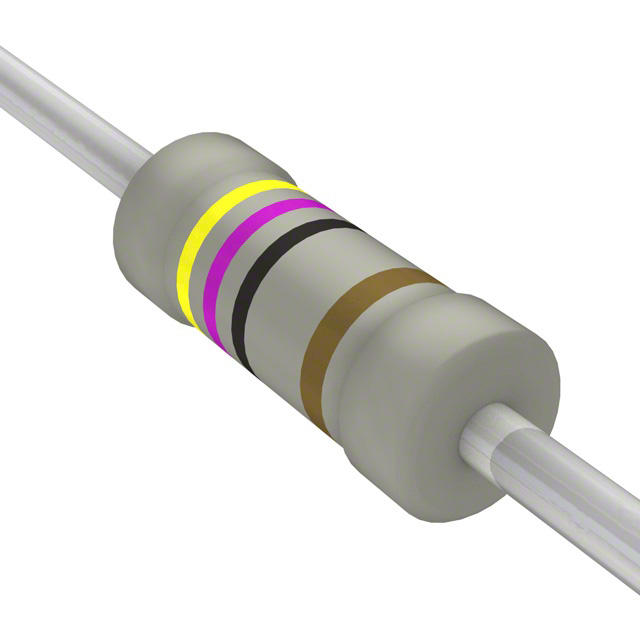

LR1F47R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Type :

FIXED RESISTOR

Mounting Style :

PCB Mount

Minimum Operating Temperature :

-55°C

Termination Style :

Axial

Power Rating :

0.6 W

Resistor Type :

FIXED RESISTOR

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Product Status :

Active

Lead Diameter :

0.55 mm

Surface Mount :

No

Package / Case :

Axial

JESD-609 Code :

e3

Voltage Rating :

350V

RoHS :

Details

Composition :

Metal Film

Length :

6.2 mm

Power (Watts) :

0.6W

Number of Terminals :

2

Packaging :

Tape and Box (TB)

Rated Power Dissipation (P) :

0.6 W

Construction :

Tubular

Features :

--

Qualification :

-

Diameter :

2.3 mm

Product Type :

Metal Film Resistors

Package Shape :

TUBULAR PACKAGE

Maximum Operating Temperature :

+155°C

Packing Method :

Ammo Pack

Reach Compliance Code :

Compliant

Height - Seated (Max) :

--

Working Voltage :

350 V

Series :

LR, Neohm

Temperature Coefficient :

50 ppm/°C

Tolerance :

1%

Pbfree Code :

yes

Product Length :

6.2

Failure Rate :

--

Factory Lead Time :

15 Weeks, 6 Days

Package :

Tape and Box (TB)

ECCN Code :

EAR99

Terminal Finish :

Tin (Sn)

Operating Temperature :

-55°C ~ 155°C

Product Category :

Metal Film Resistors - Through Hole

Resistance Tolerance :

1

Resistance :

47 Ω

Number of Terminations :

2

Brand :

TE Connectivity / Holsworthy

Base Product Number :

LR1F

Product :

Metal Film Resistors General Purpose

Mounting Feature :

THROUGH HOLE MOUNT

Additional Feature :

PRECISION

Terminal Shape :

Wire

Supplier Device Package :

Axial

Package Length :

6.2 mm

Rated Temperature :

70 °C

Product Width :

-
