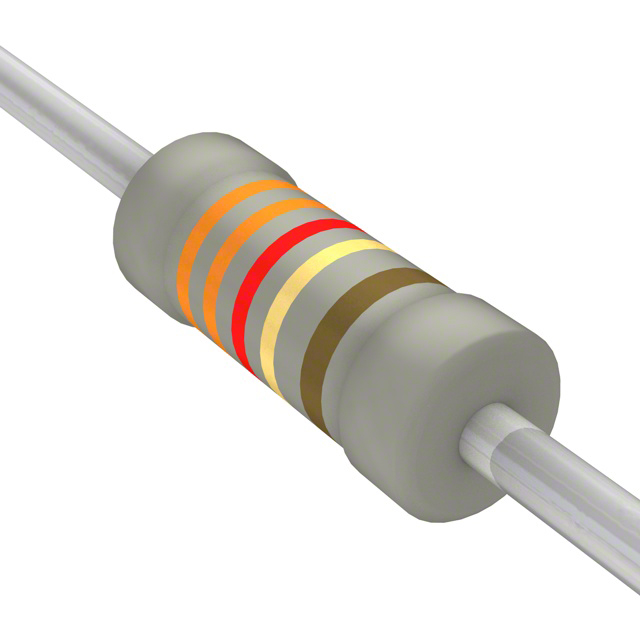

LR1F33R2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Resistance :

33.2 Ω

Supplier Device Package :

Axial

Product Depth (mm) :

Not Required(mm)

Terminal Shape :

Wire

Product Length (mm) :

6.2(mm)

Operating Temperature :

-55°C ~ 155°C

Temperature Range @ Derated Power :

70 to 125

Case Style :

Conformal Coated

Length :

6.2 mm

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Packaging :

Ammo

Package Shape :

TUBULAR PACKAGE

Operating Temp Range :

-55C to 155C

JESD-609 Code :

e3

Tolerance :

1%

Number of Terminals :

2

Packing Method :

Ammo Pack

Number of Terminations :

2

Power Rating(s) :

0.6(W)

Product Category :

Metal Film Resistors - Through Hole

Lead Diameter :

0.55 mm

Type :

Thin Film

Terminal Finish :

Tin (Sn)

Package Length :

6.2 mm

Temperature Coefficient :

50 ppm/°C

Features :

--

Diameter :

2.3 mm

Package / Case :

Axial

Military Standard :

Not Required

Brand :

TE Connectivity / AMP

Package :

Tape and Box (TB)

Minimum Operating Temperature :

- 55 C

Mounting Feature :

THROUGH HOLE MOUNT

Flame-Proof Support :

No

RoHS :

Details

Series :

LR, Neohm

Product Height (mm) :

Not Required(mm)

Rated Power Dissipation (P) :

0.6 W

Surface Mount :

No

Power Rating :

600 mW

Reach Compliance Code :

Compliant

Height - Seated (Max) :

--

Product Type :

Metal Film Resistors

Product Diameter (mm) :

2.3(mm)

Maximum Operating Temperature :

+ 155 C

Termination Style :

Axial

Composition :

Metal Film

Tolerance (+ or -) :

1%

Voltage Rating :

350 V

Product :

Metal Film Resistors General Purpose

Lead Spacing (nom) :

Not Required(mm)

Mounting Style :

PCB Mount

Working Voltage :

350 V

Resistor Type :

FIXED RESISTOR

Additional Feature :

PRECISION

Construction :

Tubular

Rated Temperature :

70 °C

Failure Rate :

Not Required

ECCN Code :

EAR99

Base Product Number :

LR1F

Pbfree Code :

yes

Power (Watts) :

0.6W

Product Status :

Active
