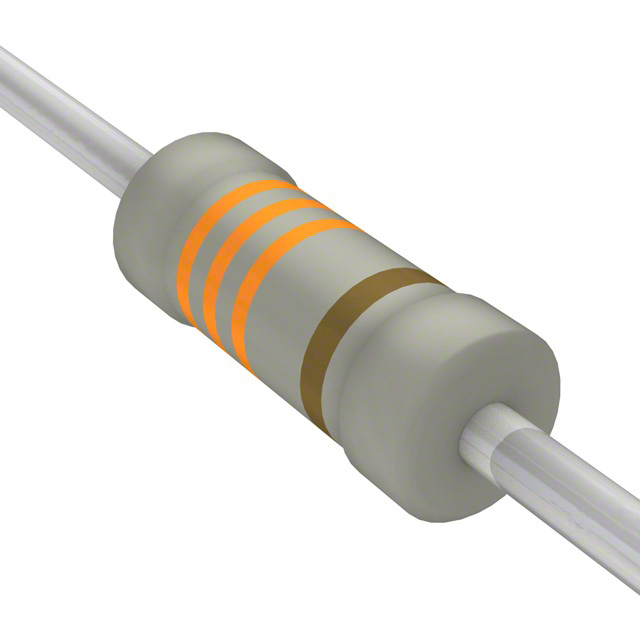

LR1F33K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Surface Mount :

No

Terminal Finish :

Tin (Sn)

Number of Terminations :

2

Maximum Operating Temperature :

+155°C

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Pbfree Code :

yes

Height - Seated (Max) :

--

Packaging :

Ammo

Flame-Proof Support :

No

Diameter :

2.3 mm

Power (Watts) :

0.6W

Factory Lead Time :

15 Weeks, 6 Days

Rated Power Dissipation (P) :

0.6 W

Additional Feature :

PRECISION

Package / Case :

Axial

Mounting Style :

PCB Mount

ECCN Code :

EAR99

Product Height (mm) :

Not Required(mm)

Minimum Operating Temperature :

-55°C

Product Type :

Metal Film Resistors

Military Standard :

Not Required

Reach Compliance Code :

Compliant

Case Style :

Epoxy Resin

Rated Temperature :

70 °C

Working Voltage :

350 V

Operating Temp Range :

-55C to 155C

Qualification :

-

Brand :

TE Connectivity / Holsworthy

Temperature Coefficient :

50 ppm/°C

Resistance :

33000 Ω

Temperature Range @ Derated Power :

70 to 125

Packing Method :

Ammo Pack

Package :

Tape and Box (TB)

Resistance Tolerance :

1

Composition :

Metal Film

Mounting Feature :

THROUGH HOLE MOUNT

Package Shape :

TUBULAR PACKAGE

Power Rating :

0.6 W

Product Depth (mm) :

Not Required(mm)

Tolerance (+ or -) :

1%

Length :

6.2 mm

Supplier Device Package :

Axial

Resistor Type :

FIXED RESISTOR

Tolerance :

1%

Package Length :

6.2 mm

Features :

--

Terminal Shape :

Wire

Number of Terminals :

2

Base Product Number :

LR1F

Lead Diameter :

0.55 mm

Product Length :

6.2

Product Length (mm) :

6.2(mm)

Operating Temperature :

-55°C ~ 155°C

Failure Rate :

Not Required

Product :

Metal Film Resistors General Purpose

Construction :

Tubular

JESD-609 Code :

e3

Series :

LR, Neohm

Power Rating(s) :

0.6(W)

Product Status :

Active

Voltage Rating :

350V

Product Width :

-

RoHS :

Details

Type :

Metal Film

Termination Style :

Axial

Lead Spacing (nom) :

Not Required(mm)

Product Diameter (mm) :

2.3(mm)

Product Category :

Metal Film Resistors - Through Hole
