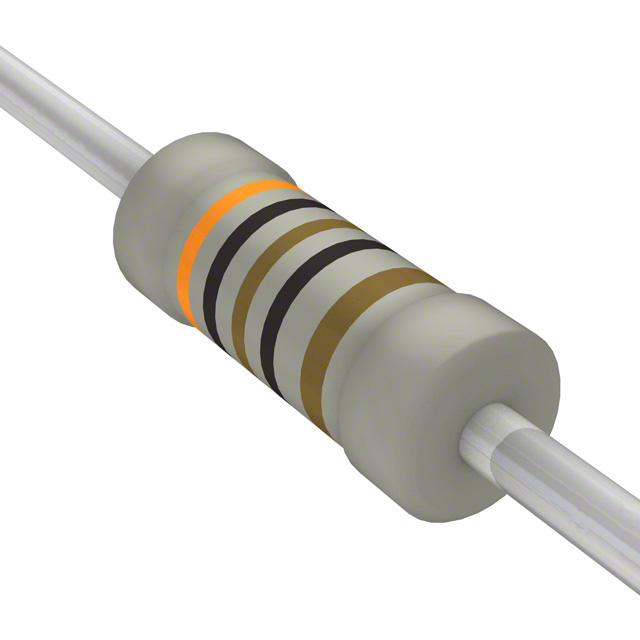

LR1F301R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Pbfree Code :

yes

ECCN Code :

EAR99

Composition :

Metal Film

Reach Compliance Code :

Compliant

Length :

6.2 mm

Temperature Coefficient :

±50(ppm/°C)

Mounting Style :

PCB Mount

Product Diameter (mm) :

2.3(mm)

Type :

Thin Film

Mounting Feature :

THROUGH HOLE MOUNT

Product Depth (mm) :

Not Required(mm)

Maximum Operating Temperature :

+ 155 C

Resistor Type :

FIXED RESISTOR

Power (Watts) :

0.6W

Additional Feature :

PRECISION

Package :

Tape and Box (TB)

Subcategory :

Resistors

Working Voltage :

350 V

Terminal Finish :

Tin (Sn)

Number of Terminations :

2

Rated Power Dissipation (P) :

0.6 W

Rated Temperature :

70 °C

Manufacturer :

TE Connectivity

Brand :

TE Connectivity / AMP

Construction :

Cylindrical

Operating Temperature :

-55°C ~ 155°C

RoHS :

Details

Terminal Shape :

Wire

Case Style :

Conformal Coated

Supplier Device Package :

Axial

Power Rating :

600 mW

Product Height (mm) :

Not Required(mm)

Package Length :

6.2 mm

Flame-Proof Support :

No

Termination Style :

Axial

Surface Mount :

No

Packing Method :

Ammo Pack

Diameter :

2.3 mm

Failure Rate :

Not Required

Features :

--

Package Shape :

TUBULAR PACKAGE

Product Status :

Active

Product Length (mm) :

6.2(mm)

Factory Lead Time :

15 Weeks, 6 Days

Technology :

Metal Film

Series :

LR, Neohm

Operating Temp Range :

-55C to 155C

Product :

Metal Film Resistors General Purpose

JESD-609 Code :

e3

Tolerance (+ or -) :

1%

Military Standard :

Not Required

Lead Spacing (nom) :

Not Required(mm)

Power Rating(s) :

0.6(W)

Temperature Range @ Derated Power :

70 to 125

Lead Diameter :

0.55 mm

Product Type :

Metal Film Resistors

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Product Category :

Metal Film Resistors - Through Hole

Resistance :

301(ohm)

Height - Seated (Max) :

--

Tolerance :

±1%

Minimum Operating Temperature :

- 55 C

Number of Terminals :

2

Voltage Rating :

350 V

Packaging :

Ammo

Package / Case :

Axial
