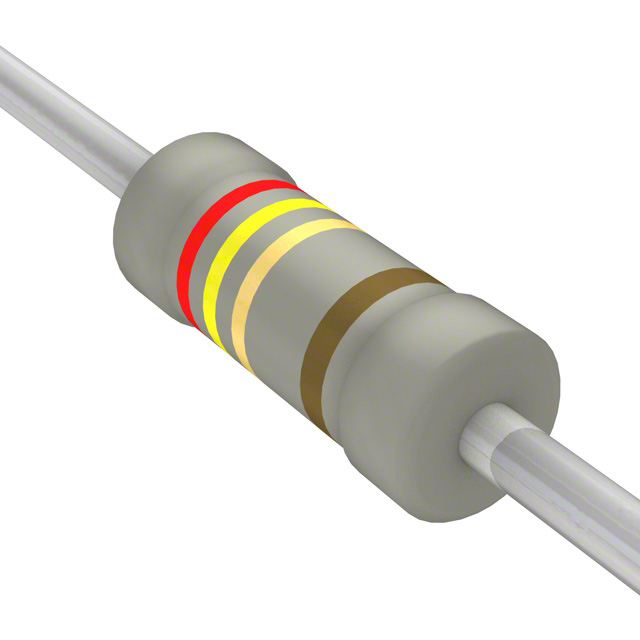

LR1F2R4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Mounting Style :

PCB Mount

Operating Temp Range :

-55C to 155C

Power (Watts) :

0.6W

Height - Seated (Max) :

--

Package / Case :

Axial

Package :

Retail Package

Pbfree Code :

yes

Resistor Type :

GENERAL PURPOSE

Product Type :

Metal Film Resistors

Terminal Shape :

Wire

Diameter :

2.3 mm

Product Length (mm) :

6.2(mm)

Power Rating :

0.6 W

Base Product Number :

LR1F

Mounting Feature :

THROUGH HOLE MOUNT

Resistance :

2.4 Ohm

Product :

Metal Film Resistors Low Noise

Composition :

Metal Film

Packaging :

Tape and Box (TB)

Temperature Coefficient :

100.0000 ppm/°C

Reach Compliance Code :

Compliant

Product Depth (mm) :

Not Required(mm)

Series :

*

Subcategory :

Resistors

Factory Lead Time :

15 Weeks, 6 Days

Case Style :

Conformal Coated

Technology :

Metal Film

Package Length :

6.2 mm

Additional Feature :

PRECISION

Tolerance :

±1%

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Operating Temperature :

-55°C ~ 155°C

Supplier Device Package :

Axial

Termination Style :

Axial

Minimum Operating Temperature :

- 55 C

Package Shape :

TUBULAR PACKAGE

Working Voltage :

350 V

Power Rating(s) :

0.6(W)

Resistance Tolerance :

1

Manufacturer :

TE Connectivity

Lead Spacing (nom) :

Not Required(mm)

Rated Power Dissipation (P) :

0.6 W

Number of Terminations :

2

Product Category :

Metal Film Resistors - Through Hole

Features :

--

Product Width :

-

Brand :

TE Connectivity / Holsworthy

Maximum Operating Temperature :

+ 155 C

Tolerance (+ or -) :

1%

Product Diameter (mm) :

2.3(mm)

Construction :

Cylindrical

Packing Method :

Ammo Pack

Number of Terminals :

2

RoHS :

Details

JESD-609 Code :

e3

Product Length :

6.2

ECCN Code :

EAR99

Rated Temperature :

70 °C

Military Standard :

Not Required

Voltage Rating :

350 V

Surface Mount :

No

Product Status :

Active

Lead Diameter :

0.55 mm

Qualification :

-

Failure Rate :

--

Type :

Metal Film

Length :

6.2 mm

Terminal Finish :

Tin (Sn)

Product Height (mm) :

Not Required(mm)

Flame-Proof Support :

No

Temperature Range @ Derated Power :

70 to 125
