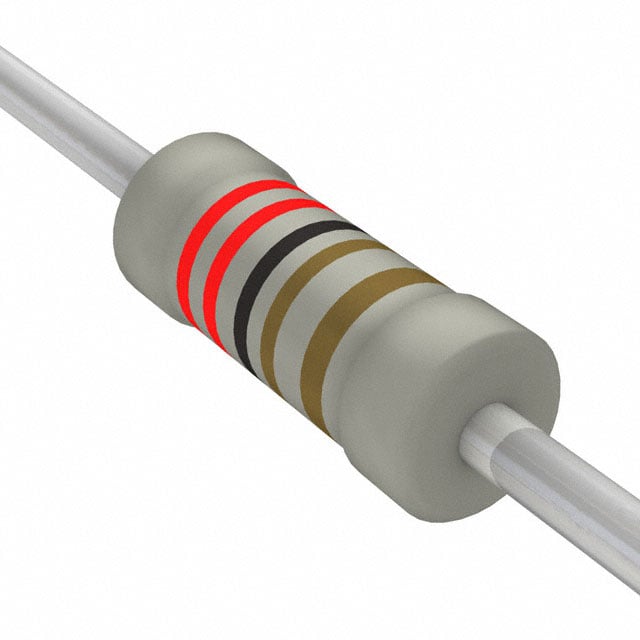

LR1F2K2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product :

Metal Film Resistors General Purpose

Temperature Range @ Derated Power :

70 to 125

Brand :

TE Connectivity / Holsworthy

Product Status :

Active

Resistor Type :

FIXED RESISTOR

Diameter :

2.3 mm

Product Length :

6.2

Lead Spacing (nom) :

Not Required(mm)

Mounting Feature :

THROUGH HOLE MOUNT

Voltage Rating :

350V

Pbfree Code :

yes

Package :

Cut Tape (CT);Tape and Box (TB);

Supplier Device Package :

Axial

Termination Style :

Axial

Product Depth (mm) :

Not Required(mm)

Resistance Tolerance :

1

Minimum Operating Temperature :

- 55 C

Factory Lead Time :

15 Weeks, 6 Days

Working Voltage :

350 V

Operating Temp Range :

-55C to 155C

Resistance :

2200 Ω

Product Width :

-

Height - Seated (Max) :

--

Terminal Shape :

Wire

Case Style :

Conformal Coated

Flame-Proof Support :

No

Operating Temperature :

-55°C ~ 155°C

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Power (Watts) :

0.6W

ECCN Code :

EAR99

Tolerance (+ or -) :

1%

Reach Compliance Code :

Compliant

Rated Temperature :

70 °C

Product Category :

Metal Film Resistors - Through Hole

Package Length :

6.2 mm

RoHS :

Details

Power Rating :

0.6 W

Composition :

Metal Film

Packing Method :

Ammo Pack

Package / Case :

Axial

Package Shape :

TUBULAR PACKAGE

Features :

--

Additional Feature :

PRECISION

Tolerance :

1%

Failure Rate :

Not Required

Number of Terminals :

2

Power Rating(s) :

0.6(W)

Base Product Number :

LR1F

Surface Mount :

No

Lead Diameter :

0.55 mm

Packaging :

Ammo

Temperature Coefficient :

50 ppm/°C

Terminal Finish :

Tin (Sn)

Construction :

Tubular

Type :

Metal Film

Series :

LR, Neohm

Maximum Operating Temperature :

+ 155 C

Product Height (mm) :

Not Required(mm)

Product Type :

Metal Film Resistors

Product Length (mm) :

6.2(mm)

Mounting Style :

PCB Mount

Military Standard :

Not Required

Product Diameter (mm) :

2.3(mm)

Rated Power Dissipation (P) :

0.6 W

JESD-609 Code :

e3

Qualification :

-

Number of Terminations :

2

Length :

6.2 mm
