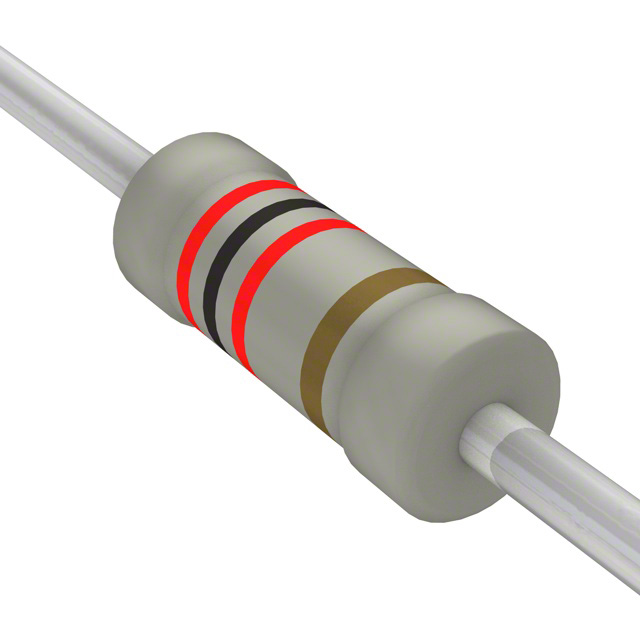

LR1F2K0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Operating Temperature :

-55°C ~ 155°C

Reach Compliance Code :

Compliant

Lead Spacing (nom) :

Not Required(mm)

Base Product Number :

LR1F

Product Depth (mm) :

Not Required(mm)

Product :

Metal Film Resistors General Purpose

Product Status :

Active

Product Type :

Metal Film Resistors

RoHS :

Details

Package / Case :

Axial

JESD-609 Code :

e3

Power Rating :

0.6 W

Terminal Shape :

Wire

Qualification :

-

Package Length :

6.2 mm

Type :

Thin Film

Package :

Tape and Box (TB)

Power Rating(s) :

0.6(W)

Minimum Operating Temperature :

-55°C

Product Length (mm) :

6.2(mm)

Product Length :

6.2 mm

Voltage Rating :

350V

Product Diameter (mm) :

2.3(mm)

Rated Temperature :

70 °C

Product Width :

-

Tolerance (+ or -) :

1%

Resistance Tolerance :

1

Packaging :

Tape and Box (TB)

Product Category :

Metal Film Resistors - Through Hole

Supplier Device Package :

Axial

Working Voltage :

350 V

Rated Power Dissipation (P) :

0.6 W

Mounting Style :

PCB Mount

Temperature Coefficient :

50 ppm/°C

Temperature Range @ Derated Power :

70 to 125

Features :

--

Product Height (mm) :

Not Required(mm)

Composition :

Metal Film

Resistor Type :

FIXED RESISTOR

Height - Seated (Max) :

--

Failure Rate :

--

Case Style :

Epoxy Resin

Additional Feature :

PRECISION

Resistance :

2000 Ω

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Power (Watts) :

0.6W

Brand :

TE Connectivity / Holsworthy

Package Shape :

TUBULAR PACKAGE

Mounting Feature :

THROUGH HOLE MOUNT

Packing Method :

Ammo Pack

Operating Temp Range :

-55C to 155C

Maximum Operating Temperature :

+155°C

ECCN Code :

EAR99

Surface Mount :

No

Flame-Proof Support :

No

Number of Terminations :

2

Length :

6.2 mm

Construction :

Tubular

Diameter :

2.3 mm

Lead Diameter :

0.55 mm

Series :

LR, Neohm

Termination Style :

Axial

Pbfree Code :

yes

Number of Terminals :

2

Terminal Finish :

Tin (Sn)

Military Standard :

Not Required

Factory Lead Time :

15 Weeks, 6 Days

Tolerance :

1%
