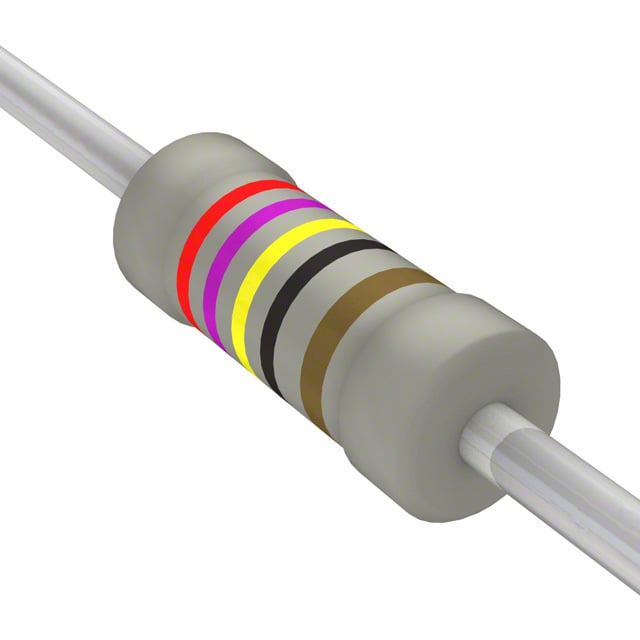

LR1F274R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lead Diameter :

0.55 mm

Features :

--

Voltage Rating :

350V

Rated Temperature :

70 °C

Resistance :

274 Ω

Additional Feature :

PRECISION

Power (Watts) :

0.6W

Brand :

TE Connectivity / Holsworthy

Base Product Number :

LR1F

Power Rating :

0.6 W

Packaging :

Tape and Box (TB)

Temperature Coefficient :

50 ppm/°C

Number of Terminals :

2

Working Voltage :

350 V

Package Length :

6.2 mm

Diameter :

2.3 mm

Type :

General Purpose Metal Film Leaded Resistor

Terminal Finish :

Tin (Sn)

Composition :

Metal Film

Mounting Feature :

THROUGH HOLE MOUNT

Product :

Metal Film Resistors

Package :

Tape and Box (TB)

Tolerance :

1%

Package Shape :

TUBULAR PACKAGE

Construction :

Tubular

Supplier Device Package :

Axial

Packing Method :

Ammo Pack

Qualification :

-

Rated Power Dissipation (P) :

0.6 W

Number of Terminations :

2

Reach Compliance Code :

Compliant

Series :

LR, Neohm

Surface Mount :

No

JESD-609 Code :

e3

ECCN Code :

EAR99

Product Type :

Metal Film Resistors

Product Category :

Metal Film Resistors - Through Hole

Product Length :

6.2

Product Status :

Active

Pbfree Code :

yes

Termination Style :

Axial

Operating Temperature :

-55°C ~ 155°C

Terminal Shape :

Wire

Resistor Type :

FIXED RESISTOR

Mounting Style :

PCB Mount

Package / Case :

Axial

Factory Lead Time :

15 Weeks, 6 Days

Product Width :

-

Maximum Operating Temperature :

+ 155 C

Height - Seated (Max) :

--

Failure Rate :

--

Minimum Operating Temperature :

- 55 C

Resistance Tolerance :

1

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Length :

6.2 mm
