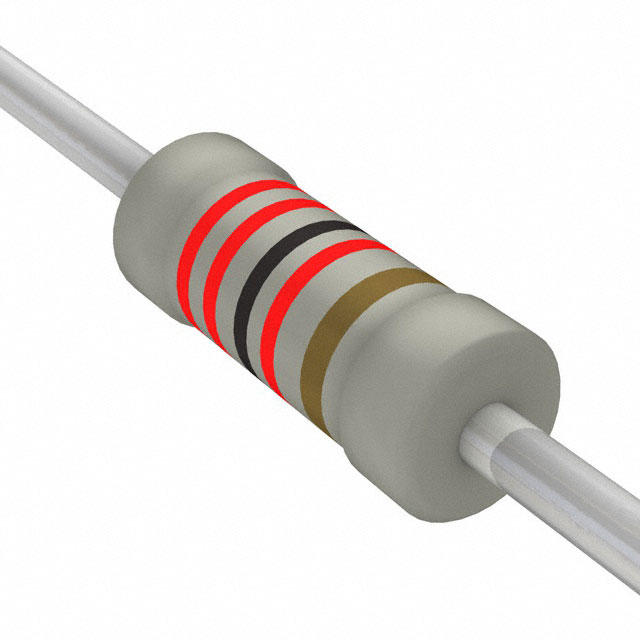

LR1F22K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Mounting Feature :

THROUGH HOLE MOUNT

Product Length :

5.72 mm

Product Type :

Metal Film Resistors

Mounting Style :

PCB Mount

Brand :

TE Connectivity / Holsworthy

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Reach Compliance Code :

Compliant

Voltage Rating :

350V

Subcategory :

Resistors

Resistance :

22 kOhm

Additional Feature :

PRECISION

Terminal Shape :

Wire

Resistor Type :

GENERAL PURPOSE

Pbfree Code :

yes

Minimum Operating Temperature :

-55°C

Type :

FIXED RESISTOR

Temperature Coefficient :

50.0000 ppm/°C

Number of Terminals :

2

Rated Temperature :

70 °C

Number of Terminations :

2

JESD-609 Code :

e3

Composition :

Metal Film

Length :

6.2 mm

Power (Watts) :

0.6W

Package Shape :

TUBULAR PACKAGE

Manufacturer :

TE Connectivity

RoHS :

Details

Series :

LR, Neohm

Lead Diameter :

0.55 mm

Features :

--

Maximum Operating Temperature :

+155°C

Failure Rate :

--

Packaging :

Tape and Box (TB)

Resistance Tolerance :

1

Packing Method :

Ammo Pack

Termination Style :

Axial

Supplier Device Package :

Axial

Operating Temperature :

-55°C ~ 155°C

Tolerance :

±1%

Package :

Cut Tape (CT);Tape and Box (TB);

Height - Seated (Max) :

--

Construction :

Tubular

Product :

Metal Film Resistors General Purpose

Terminal Finish :

Tin (Sn)

Surface Mount :

No

Product Width :

5.72 x 6.35 x 1.52

Qualification :

-

Working Voltage :

350 V

Capacitance :

1 uF

Package / Case :

Axial

Technology :

Metal Film

Diameter :

2.3 mm

Product Status :

Active

Base Product Number :

LR1F

Power Rating :

0.6 W

Package Length :

6.2 mm

Factory Lead Time :

15 Weeks, 6 Days

Product Category :

Metal Film Resistors - Through Hole

Rated Power Dissipation (P) :

0.6 W
