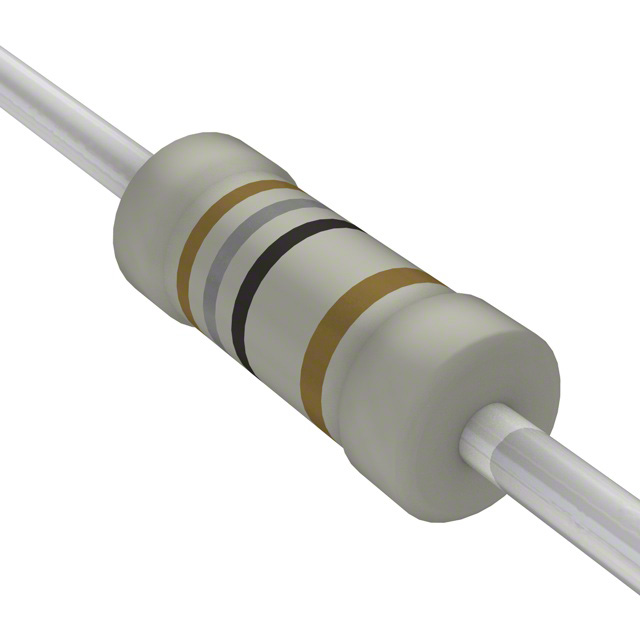

LR1F18R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product Type :

Metal Film Resistors

Mounting Style :

PCB Mount

Temperature Coefficient :

50 ppm/°C

Features :

--

Product Category :

Metal Film Resistors - Through Hole

Package / Case :

Axial

Packaging :

Tape and Box (TB)

Brand :

TE Connectivity / Holsworthy

Diameter :

2.3 mm

Product :

Metal Film Resistors General Purpose

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Type :

FIXED RESISTOR

Composition :

Metal Film

Power (Watts) :

0.6W

Termination Style :

Axial

Number of Terminations :

2

Product Width :

-

Product Status :

Active

Surface Mount :

No

Mounting Feature :

THROUGH HOLE MOUNT

Pbfree Code :

yes

Voltage Rating :

350V

Failure Rate :

--

Product Length :

6.2

Qualification :

-

Operating Temperature :

-55°C ~ 155°C

Additional Feature :

PRECISION

Rated Temperature :

70 °C

Package :

Tape and Box (TB)

Terminal Shape :

Wire

ECCN Code :

EAR99

Resistance :

18 Ω

Number of Terminals :

2

Supplier Device Package :

Axial

Reach Compliance Code :

Compliant

Packing Method :

Ammo Pack

Series :

LR, Neohm

Base Product Number :

LR1F

Construction :

Tubular

Resistance Tolerance :

1

Working Voltage :

350 V

Length :

6.2 mm

Minimum Operating Temperature :

- 55 C

Factory Lead Time :

15 Weeks, 6 Days

Rated Power Dissipation (P) :

0.6 W

Package Shape :

TUBULAR PACKAGE

Maximum Operating Temperature :

+ 155 C

Terminal Finish :

Tin (Sn)

Height - Seated (Max) :

--

JESD-609 Code :

e3

Tolerance :

1%

Package Length :

6.2 mm

Lead Diameter :

0.55 mm

Power Rating :

0.6 W

Resistor Type :

FIXED RESISTOR
