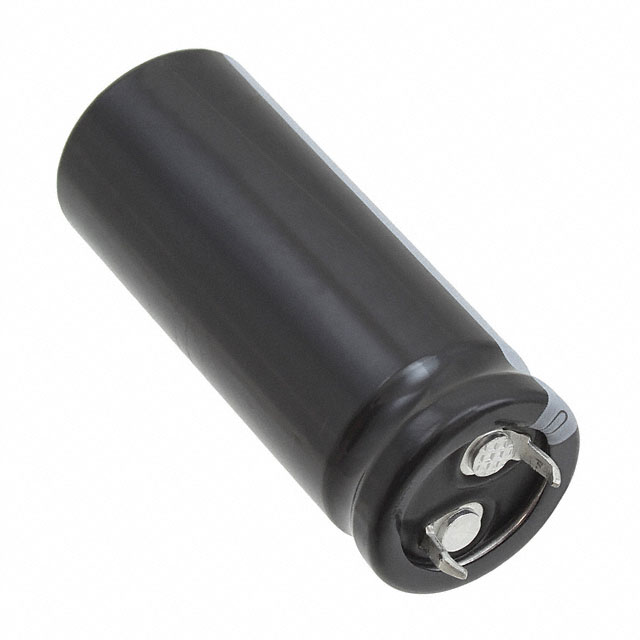

LKX2D561MESY50

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

HTS Code :

8532.22.00

Package / Case :

Radial, Can - Snap-In

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

17 Weeks

Ripple Current @ High Frequency :

2.4A @ 50kHz

Dielectric Material :

ALUMINUM (WET)

Size / Dimension :

0.787Dia 20.00mm

Applications :

Audio

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing :

0.394 10.00mm

Lifetime @ Temp :

2000 Hrs @ 105°C

Lead Pitch :

10.0076mm

Operating Temperature :

-40°C~105°C

Polarization :

Polar

Published :

2015

Tan Delta :

0.15

Life (Hours) :

2000 hours

Series :

LKX

RoHS Status :

ROHS3 Compliant

Termination :

Snap in

Terminal Finish :

Aluminum (Al)

Terminal Pitch :

10mm

Pbfree Code :

yes

ECCN Code :

EAR99

Tolerance :

±20%

Ripple Current @ Low Frequency :

1.6A @ 120Hz

Packaging :

Bulk

Height Seated (Max) :

2.047 52.00mm

Mount :

Through Hole

Voltage - Rated DC :

200V

Number of Terminations :

2

Capacitance :

560μF

Leakage Current :

1.00399mA

Ripple Current :

1.6A

Length :

50mm

Diameter :

20mm

Mounting Type :

Through Hole
