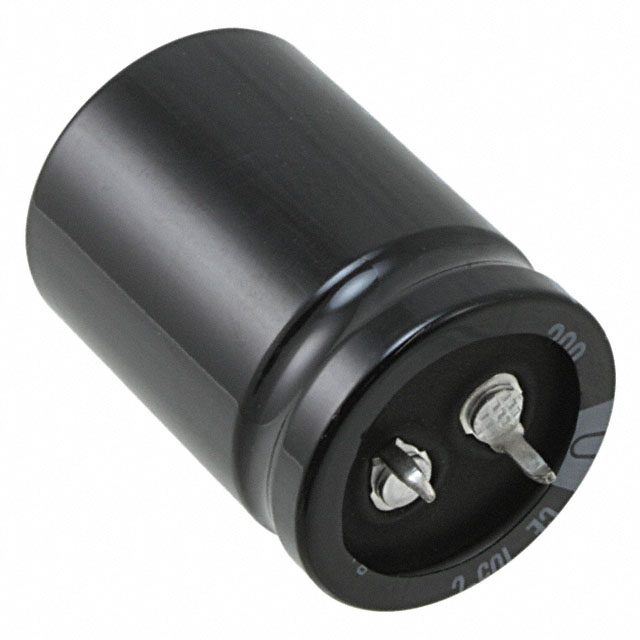

LGR2W820MELA35

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

ECCN Code :

EAR99

Lifetime @ Temp :

10000 Hrs @ 105°C

Lead Spacing :

0.394 10.00mm

Polarization :

Polar

Tolerance :

±20%

Tan Delta :

0.2

Terminal Finish :

Matte Tin (Sn)

Ripple Current @ High Frequency :

800.8mA @ 50kHz

Life (Hours) :

10000 hours

Operating Temperature :

-25°C~105°C

Ripple Current @ Low Frequency :

560mA @ 120Hz

Package / Case :

Radial, Can - Snap-In

JESD-609 Code :

e3

Height Seated (Max) :

1.457 37.00mm

Voltage :

450V

Radiation Hardening :

No

Ripple Current :

560mA

Number of Terminations :

2

Published :

2009

Diameter :

25mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Factory Lead Time :

19 Weeks

Height :

35mm

Packaging :

Bulk

Lead Diameter :

800 µm

Voltage - Rated DC :

450V

Leakage Current :

570μA

Pbfree Code :

yes

Series :

LGR

Dielectric Material :

ALUMINUM (WET)

Dissipation Factor :

0.2 %

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Size / Dimension :

0.984Dia 25.00mm

Lead Pitch :

10mm

Termination :

Snap in

Number of Pins :

2

Test Frequency :

120Hz

Mount :

Through Hole

Capacitance :

82µF

Applications :

GENERAL PURPOSE
