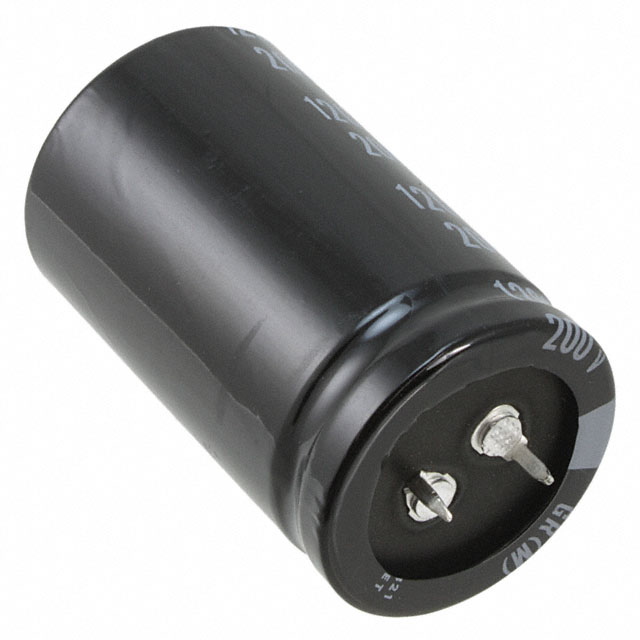

LGR2D122MELB50

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Published :

2015

Height Seated (Max) :

2.047 52.00mm

JESD-609 Code :

e3

Lifetime @ Temp :

10000 Hrs @ 105°C

Series :

LGR

Ripple Current @ Low Frequency :

2.3A @ 120Hz

ECCN Code :

EAR99

Number of Terminations :

2

Terminal Finish :

Matte Tin (Sn)

Package / Case :

Radial, Can - Snap-In

Lead Pitch :

10.0076mm

RoHS Status :

ROHS3 Compliant

Feature :

GENERAL PURPOSE

Life (Hours) :

10000 hours

Number of Pins :

2

Voltage - Rated DC :

200V

Test Frequency :

120Hz

Leakage Current :

1.46mA

Ripple Current :

2.3A

Diameter :

30mm

Tolerance :

±20%

Polarization :

Polar

Size / Dimension :

1.181Dia 30.00mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Mount :

Through Hole

Pbfree Code :

yes

Factory Lead Time :

19 Weeks

Packaging :

Bulk

Length :

50mm

Lead Spacing :

0.394 10.00mm

Terminal Pitch :

10mm

Dielectric Material :

ALUMINUM (WET)

Termination :

Snap in

Capacitance :

1200μF

Mounting Type :

Through Hole

Ripple Current @ High Frequency :

3.45A @ 50kHz

Dissipation Factor :

0.15 %

Operating Temperature :

-40°C~105°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Applications :

GENERAL PURPOSE
