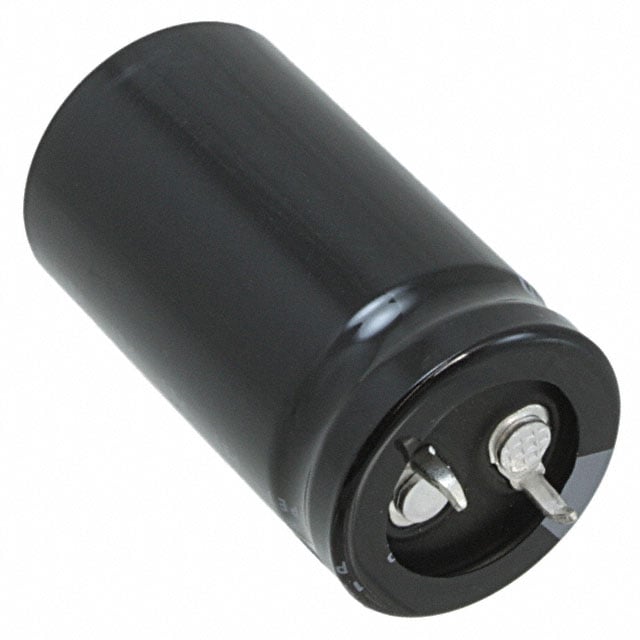

LGR2W680MELZ40

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Series :

LGR

Voltage - Rated DC :

450V

Package / Case :

Radial, Can - Snap-In

Operating Temperature :

-25°C~105°C

Life (Hours) :

10000 hours

Terminal Pitch :

10mm

Mount :

Through Hole

Published :

2015

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Test Frequency :

120Hz

Packaging :

Bulk

Number of Terminations :

2

Termination :

Snap in

Mounting Type :

Through Hole

Lead Spacing :

0.394 10.00mm

Capacitance :

68µF

Pbfree Code :

yes

Dissipation Factor :

0.2 %

Ripple Current :

530mA

Polarization :

Polar

Leakage Current :

520μA

Size / Dimension :

0.866Dia 22.00mm

Terminal Finish :

Matte Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

10.0076mm

Lifetime @ Temp :

10000 Hrs @ 105°C

Feature :

GENERAL PURPOSE

Ripple Current @ High Frequency :

757.9mA @ 50kHz

Factory Lead Time :

19 Weeks

JESD-609 Code :

e3

Length :

40mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Dielectric Material :

ALUMINUM (WET)

Tan Delta :

0.2

Applications :

GENERAL PURPOSE

Height Seated (Max) :

1.654 42.00mm

Diameter :

22mm

Tolerance :

±20%

Ripple Current @ Low Frequency :

530mA @ 120Hz

Number of Pins :

2
