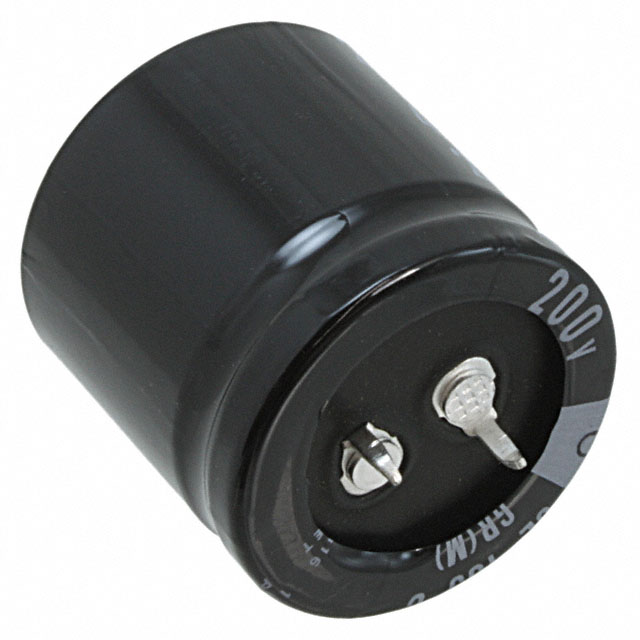

LGR2W121MELB30

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Package / Case :

Radial, Can - Snap-In

Capacitance :

120μF

Lead Diameter :

800 µm

Polarization :

Polar

Voltage - Rated DC :

450V

JESD-609 Code :

e3

Lifetime @ Temp :

10000 Hrs @ 105°C

Operating Temperature :

-25°C~105°C

Height :

30mm

Leakage Current :

690μA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2009

Number of Pins :

2

Terminal Finish :

Matte Tin (Sn)

Ripple Current :

720mA

Mount :

Through Hole

Test Frequency :

120Hz

Mounting Type :

Through Hole

Number of Terminations :

2

Lead Spacing :

0.394 10.00mm

Packaging :

Bulk

Radiation Hardening :

No

Tan Delta :

0.2

Height Seated (Max) :

1.260 32.00mm

Factory Lead Time :

19 Weeks

RoHS Status :

ROHS3 Compliant

Lead Pitch :

10mm

Dissipation Factor :

0.2 %

Series :

LGR

Life (Hours) :

10000 hours

Size / Dimension :

1.181Dia 30.00mm

Voltage :

450V

Ripple Current @ Low Frequency :

720mA @ 120Hz

Ripple Current @ High Frequency :

1.0296A @ 50kHz

ECCN Code :

EAR99

Applications :

GENERAL PURPOSE

Dielectric Material :

ALUMINUM (WET)

Pbfree Code :

yes

Termination :

Snap in

Tolerance :

±20%

Diameter :

30mm
