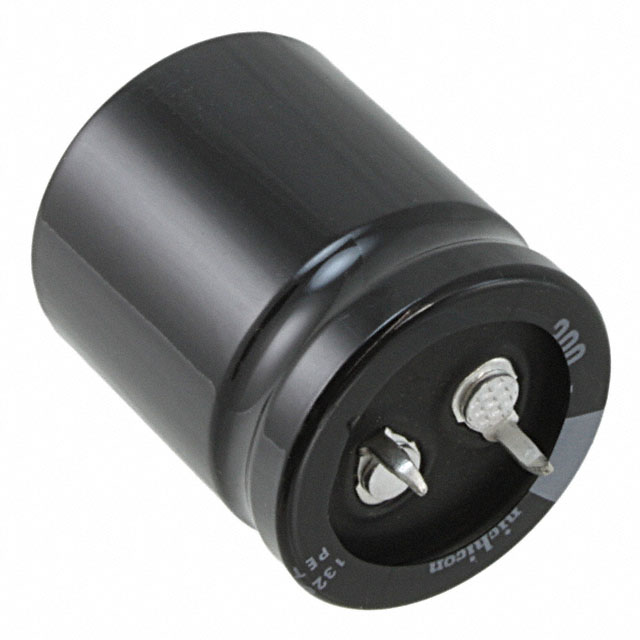

LGR2E271MELA30

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Radiation Hardening :

No

Number of Pins :

2

Terminal Finish :

Matte Tin (Sn)

Height :

30mm

Published :

2009

Mounting Type :

Through Hole

Lead Diameter :

1.5 mm

Life (Hours) :

10000 hours

Series :

LGR

Termination :

Snap in

Height Seated (Max) :

1.260 32.00mm

Lead Spacing :

0.394 10.00mm

Size / Dimension :

0.984Dia 25.00mm

Ripple Current @ High Frequency :

1.65A @ 50kHz

Packaging :

Bulk

Ripple Current @ Low Frequency :

1.1A @ 120Hz

Test Frequency :

120Hz

Mount :

Through Hole

Lead Pitch :

10mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

ECCN Code :

EAR99

Package / Case :

Radial, Can - Snap-In

Voltage :

250V

Lifetime @ Temp :

10000 Hrs @ 105°C

Leakage Current :

770µA

Applications :

GENERAL PURPOSE

Ripple Current :

1.1A

Tolerance :

±20%

Dissipation Factor :

0.15 %

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Capacitance :

270μF

Pbfree Code :

yes

Polarization :

Polar

Number of Terminations :

2

Voltage - Rated DC :

250V

Dielectric Material :

ALUMINUM (WET)

Diameter :

25mm

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

19 Weeks

JESD-609 Code :

e3

Operating Temperature :

-40°C~105°C
