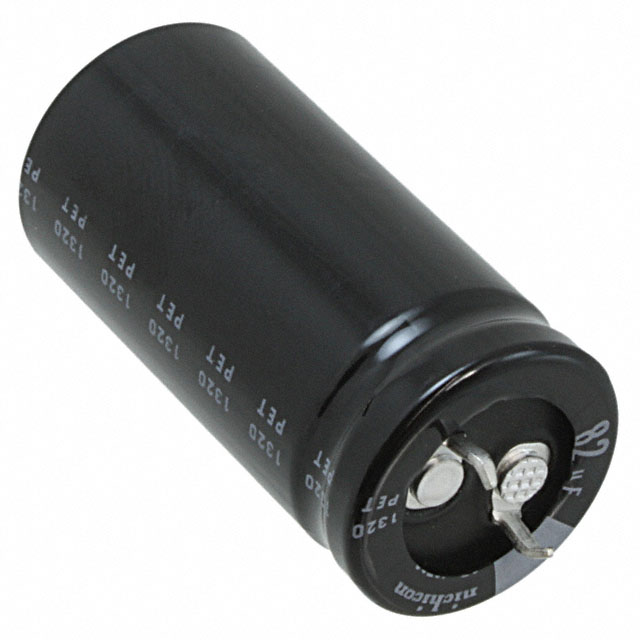

LGR2D561MELZ45

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Lead Spacing :

0.394 10.00mm

Leakage Current :

1mA

Applications :

GENERAL PURPOSE

Mounting Type :

Through Hole

Number of Pins :

2

Test Frequency :

120Hz

Lifetime @ Temp :

10000 Hrs @ 105°C

Size / Dimension :

0.866Dia 22.00mm

Mount :

Through Hole

Termination :

Snap in

Height Seated (Max) :

1.850 47.00mm

ECCN Code :

EAR99

Packaging :

Bulk

JESD-609 Code :

e3

Capacitance :

560μF

Dielectric Material :

ALUMINUM (WET)

Operating Temperature :

-40°C~105°C

Polarization :

Polar

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

19 Weeks

Ripple Current @ Low Frequency :

1.5A @ 120Hz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Matte Tin (Sn)

Package / Case :

Radial, Can - Snap-In

Dissipation Factor :

0.15 %

Terminal Pitch :

10mm

Published :

2015

Pbfree Code :

yes

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Diameter :

22mm

Voltage - Rated DC :

200V

Life (Hours) :

10000 hours

Ripple Current :

1.5A

Ripple Current @ High Frequency :

2.25A @ 50kHz

Length :

45mm

Number of Terminations :

2

Series :

LGR

Lead Pitch :

10.0076mm

Tolerance :

±20%
