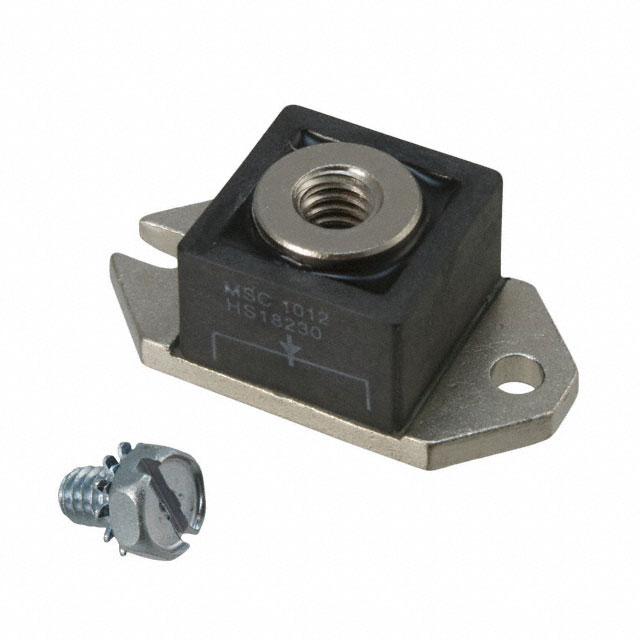

HS18230

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

UNSPECIFIED

Diode Element Material :

SILICON

Mount :

Chassis Mount, Screw

Min Operating Temperature :

-55°C

Radiation Hardening :

No

Forward Voltage :

550mV

Pbfree Code :

No

HTS Code :

8541.10.00.80

Peak Non-Repetitive Surge Current :

300A

Application :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Case Connection :

CATHODE

Max Reverse Voltage (DC) :

30V

Diode Type :

Schottky

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Phases :

1

Mounting Type :

Chassis Mount

Forward Current :

180A

Max Repetitive Reverse Voltage (Vrrm) :

30V

Number of Elements :

1

Terminal Position :

UPPER

Element Configuration :

Single

Current - Reverse Leakage @ Vr :

10mA @ 30V

Package / Case :

HALF-PAK

Number of Terminations :

1

Voltage - Forward (Vf) (Max) @ If :

550mV @ 180A

Average Rectified Current :

180A

JESD-30 Code :

R-XUFM-X1

Number of Pins :

2

Packaging :

Bulk

Capacitance @ Vr, F :

7000pF @ 5V 1MHz

Peak Reverse Current :

10mA

Published :

1999

ECCN Code :

EAR99

Max Operating Temperature :

150°C
