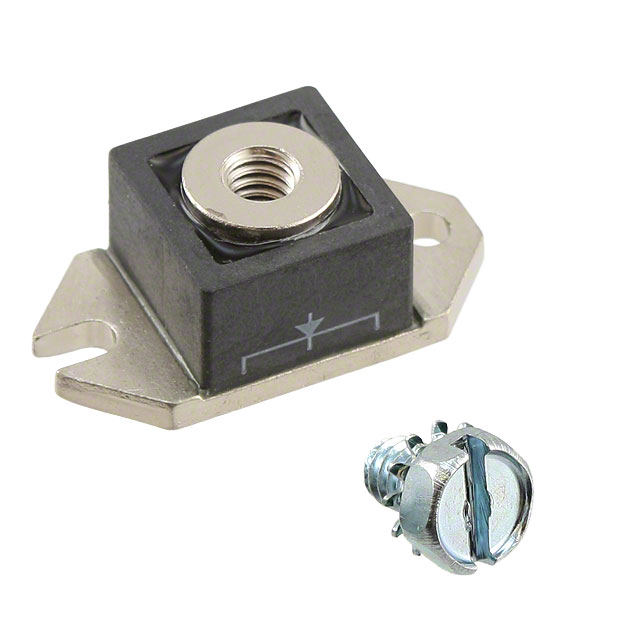

HS18140

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Voltage - Forward (Vf) (Max) @ If :

700mV @ 180A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Case Connection :

CATHODE

Terminal Form :

UNSPECIFIED

Capacitance @ Vr, F :

7500pF @ 5V 1MHz

Average Rectified Current :

180A

Package / Case :

HALF-PAK

Max Reverse Voltage (DC) :

40V

Max Repetitive Reverse Voltage (Vrrm) :

40V

RoHS Status :

RoHS Compliant

Radiation Hardening :

No

Number of Pins :

2

Mount :

Chassis Mount, Screw

Peak Reverse Current :

4mA

Diode Element Material :

SILICON

Terminal Position :

UPPER

Number of Phases :

1

Mounting Type :

Chassis Mount

Current - Reverse Leakage @ Vr :

4mA @ 40V

Diode Type :

Schottky

HTS Code :

8541.10.00.80

Element Configuration :

Single

Published :

2012

Forward Voltage :

700mV

Min Operating Temperature :

-55°C

Packaging :

Bulk

ECCN Code :

EAR99

Max Operating Temperature :

175°C

Pin Count :

1

Number of Elements :

1

Peak Non-Repetitive Surge Current :

2.5kA

Application :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

1

Forward Current :

180A

JESD-30 Code :

S-XUFM-X1
