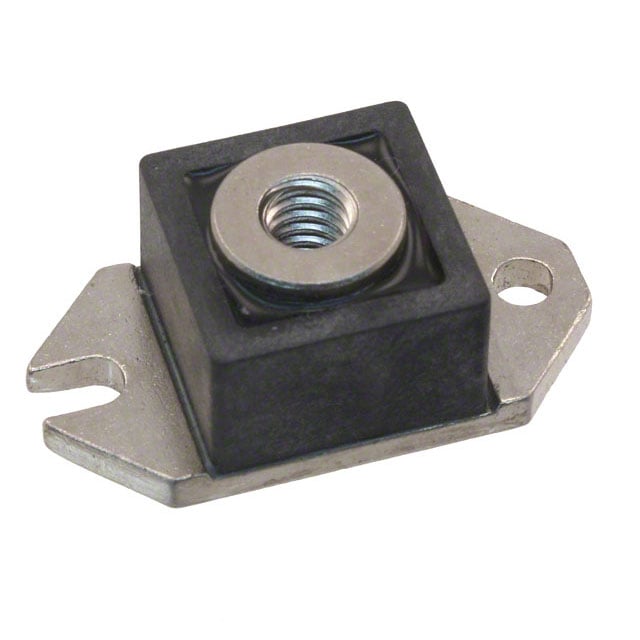

HS18145

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Capacitance @ Vr, F :

7500pF @ 5V 1MHz

Terminal Form :

UNSPECIFIED

Package / Case :

HALF-PAK

Min Operating Temperature :

-55°C

Published :

1999

Mount :

Chassis Mount, Screw

Mounting Type :

Chassis Mount

Number of Phases :

1

Number of Elements :

1

HTS Code :

8541.10.00.80

Diode Element Material :

SILICON

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Forward Voltage :

700mV

Case Connection :

CATHODE

Max Operating Temperature :

175°C

Voltage - Forward (Vf) (Max) @ If :

700mV @ 180A

Pin Count :

1

Number of Terminations :

1

Number of Pins :

2

Max Reverse Voltage (DC) :

45V

ECCN Code :

EAR99

Application :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diode Type :

Schottky

Element Configuration :

Single

Packaging :

Bulk

Average Rectified Current :

180A

Terminal Position :

UPPER

Forward Current :

180A

Radiation Hardening :

No

JESD-30 Code :

S-XUFM-X1

Peak Non-Repetitive Surge Current :

2.5kA

Max Repetitive Reverse Voltage (Vrrm) :

45V

Peak Reverse Current :

4mA

Current - Reverse Leakage @ Vr :

4mA @ 45V
