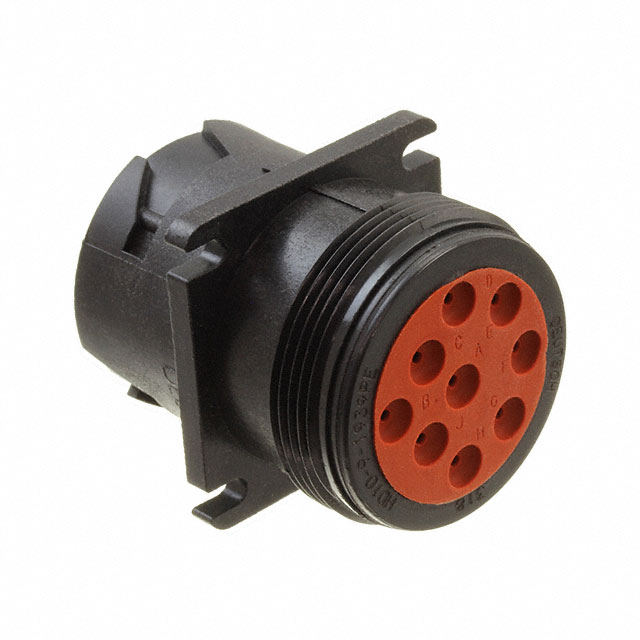

HD10-9-1939PE
Or copy the link below:
- Mfr.Part #
- HD10-9-1939PE
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 9POS PNL MNT
- Stock
- 207
- In Stock ：
- 207
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Hybrid Connector :
- No
- ELV :
- Compliant
- Type :
- For Male Pins
- Contact Type :
- Crimp
- Fastening Type :
- Bayonet Lock
- Height :
- 42.1894mm
- Housing Material :
- Thermoplastic
- Published :
- 2001
- RoHS Status :
- Non-RoHS Compliant
- Width :
- 32.49mm
- Shielding :
- Unshielded
- Note :
- Contacts Not Included
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Receptacle Housing
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- Contact Size :
- 16
- Packaging :
- Bulk
- Housing Color :
- Black
- Orientation :
- Keyed
- Number of Positions :
- 9
- Length :
- 36.5mm
- Factory Lead Time :
- 10 Weeks
- Mounting Type :
- Panel Mount
- Mounting Feature :
- Flange
- Operating Temperature :
- -40°C~125°C
- Material Flammability Rating :
- UL94 V-1
- Contact Shape :
- Circular
- Series :
- HD10
- Polarized :
- yes
- Flammability Rating :
- UL94 V-1
- Shell Size - Insert :
- 9-39
- Datasheets
- HD10-9-1939PE
Receptacle Housing Polyamide (PA), Nylon, Glass Filled Panel Mount 9 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD10-9-1939PE Overview
Currently, it is packaged in Receptacle Housing.The mounting type of the device is Panel Mount.A Bulk case is used to package the product.A product of the HD10 Series, it belongs to the range of products of that series.In addition to its benefits, this part shares a number of advantages with other For Male Pins products.
HD10-9-1939PE Features
HD10 series
HD10-9-1939PE Applications
There are a lot of TE Connectivity Deutsch Connectors
HD10-9-1939PE Circular Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
