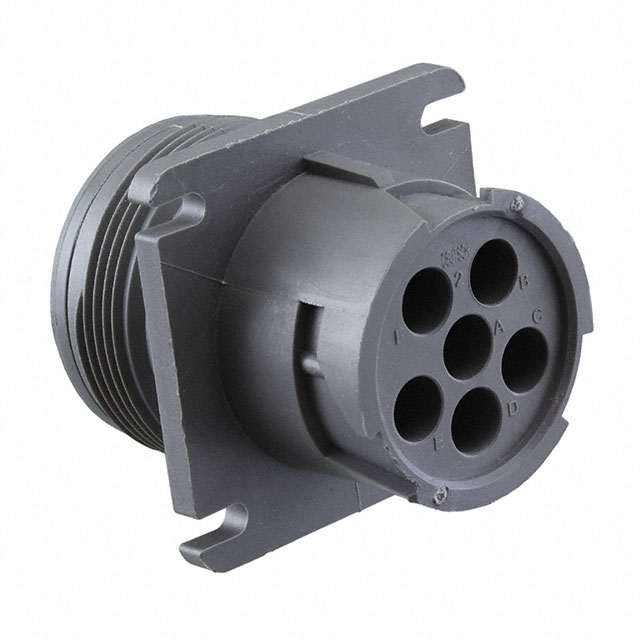

HD10-6-96P
Or copy the link below:
- Mfr.Part #
- HD10-6-96P
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 6POS PNL MNT
- Stock
- 21,152
- In Stock ：
- 21,152
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Note :
- Contacts Not Included
- Height :
- 41.5798mm
- Ratings :
- IP67
- Housing Color :
- Gray
- Mounting Type :
- Panel Mount
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- REACH SVHC :
- Unknown
- Series :
- HD10
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Color :
- Grey
- Type :
- For Male Pins
- Contact Shape :
- Circular
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Hybrid Connector :
- No
- Published :
- 2007
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Polarized :
- yes
- Contact Gender :
- Male
- Current Rating :
- 13A
- IEC Conformance :
- No
- Body Material :
- Thermoplastic
- Total Number of Contacts :
- 6
- Contact Size :
- 16
- Mounting Feature :
- Flange
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Receptacle Housing
- DIN Conformance :
- No
- Gender :
- Receptacle
- Factory Lead Time :
- 8 Weeks
- Flammability Rating :
- UL94 V-1
- Option :
- GENERAL PURPOSE
- Width :
- 38.9382mm
- Material Flammability Rating :
- UL94 V-1
- Shell Size - Insert :
- 6-96
- Operating Temperature :
- -40°C~125°C
- Packaging :
- Bulk
- Number of Positions :
- 6
- Empty Shell :
- No
- Length :
- 38.94mm
- Fastening Type :
- Bayonet Lock
- Filter Feature :
- No
- Contact Type :
- Crimp
- Contact Plating :
- Nickel
- Shielding :
- Unshielded
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Mount :
- CABLE
- Orientation :
- Keyed
- Datasheets
- HD10-6-96P
Receptacle Housing Polyamide (PA), Nylon, Glass Filled Panel Mount 6 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD10-6-96P Overview
A Receptacle Housing package is included with it.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the HD10 Series of products.Other [0] products share many of the same benefits as this part.If you wish to mount this part, you will need to use a Cable socket.
HD10-6-96P Features
HD10 series
HD10-6-96P Applications
There are a lot of TE Connectivity Deutsch Connectors
HD10-6-96P Circular Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
