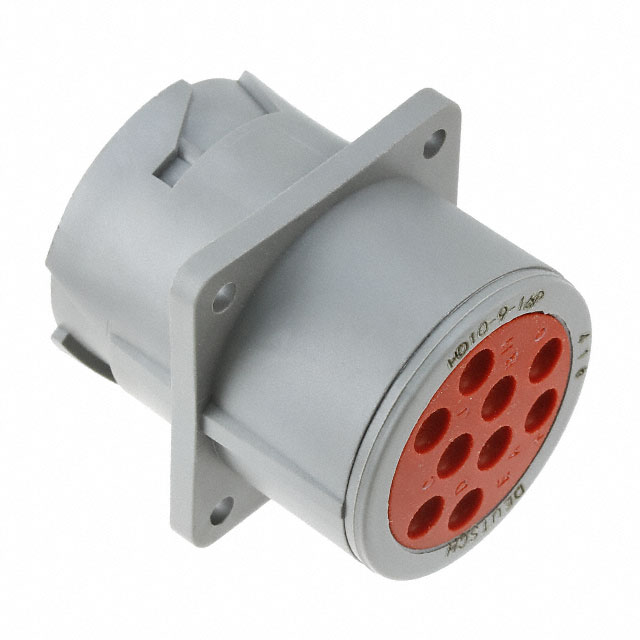

HD10-9-16P
Or copy the link below:
- Mfr.Part #
- HD10-9-16P
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 9POS PNL MNT
- Stock
- 249
- In Stock ：
- 249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~125°C
- Contact Size :
- 16
- Type :
- For Male Pins
- ELV :
- Compliant
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Published :
- 2012
- Shell Size - Insert :
- 9-16
- Length :
- 36.5mm
- Contact Type :
- Crimp
- Flammability Rating :
- UL94 V-1
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Fastening Type :
- Bayonet Lock
- Width :
- 36.5mm
- Housing Material :
- Thermoplastic
- Factory Lead Time :
- 10 Weeks
- Shielding :
- Unshielded
- Mounting Type :
- Panel Mount
- Orientation :
- Keyed
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Gray
- Mounting Feature :
- Flange
- Series :
- HD10
- Contact Shape :
- Circular
- Height :
- 41.6306mm
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Color :
- Grey
- Hybrid Connector :
- No
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- Connector Type :
- Receptacle Housing
- Number of Positions :
- 9
- Note :
- Contacts Not Included
- Polarized :
- yes
- Material Flammability Rating :
- UL94 V-1
- Datasheets
- HD10-9-16P
Receptacle Housing Polyamide (PA), Nylon, Glass Filled Panel Mount 9 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD10-9-16P Overview
Packaging for this item is Receptacle Housing.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the HD10 Series.There are many benefits associated with this part that are shared with other For Male Pins products.
HD10-9-16P Features
HD10 series
HD10-9-16P Applications
There are a lot of TE Connectivity Deutsch Connectors
HD10-9-16P Circular Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
