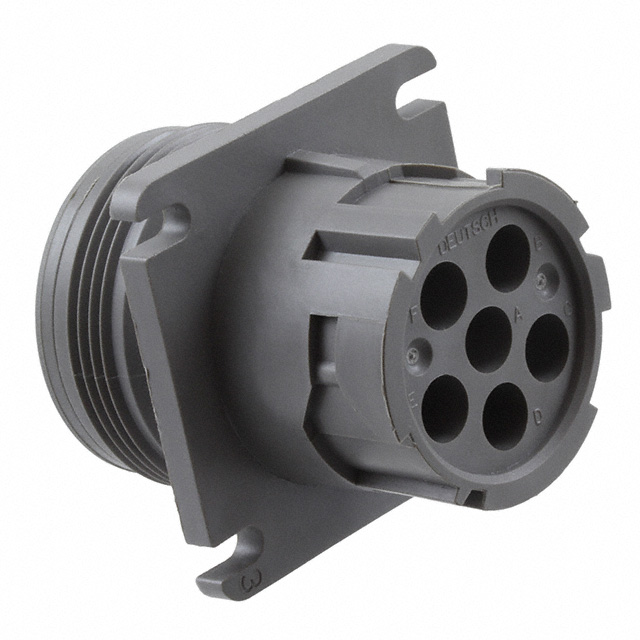

HD10-6-12P
Or copy the link below:
- Mfr.Part #
- HD10-6-12P
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 6POS PNL MNT
- Stock
- 635
- In Stock ：
- 635
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Shell Material :
- Plastic
- Contact Gender :
- Male
- Type :
- For Male Pins
- Note :
- Contacts Not Included
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Connector Type :
- Receptacle Housing
- Housing Material :
- Thermoplastic
- Shell Size - Insert :
- 6-12
- Operating Temperature :
- -40°C~125°C
- Hybrid Connector :
- No
- Contact Type :
- Crimp
- Series :
- HD10
- Filter Feature :
- No
- DIN Conformance :
- No
- Orientation :
- Keyed
- ELV :
- Compliant
- Contact Shape :
- Circular
- Housing Color :
- Gray
- ECCN Code :
- EAR99
- Length :
- 38.94mm
- Shielding :
- Unshielded
- Contact Size :
- 12
- MIL Conformance :
- No
- Number of Positions :
- 6
- Polarized :
- yes
- Mounting Type :
- Panel Mount
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Empty Shell :
- No
- Current Rating :
- 25A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Mounting Feature :
- Flange
- Ratings :
- IP67
- Contact Plating :
- Nickel
- Width :
- 38.9382mm
- Flammability Rating :
- UL94 V-1
- Material Flammability Rating :
- UL94 V-1
- Mount :
- CABLE
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Published :
- 2007
- Packaging :
- Bulk
- Color :
- Grey
- Total Number of Contacts :
- 6
- Height :
- 41.5798mm
- Fastening Type :
- Bayonet Lock
- Factory Lead Time :
- 10 Weeks
- Datasheets
- HD10-6-12P
Receptacle Housing Plastic Panel Mount 6 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD10-6-12P Overview
Currently, it is packaged in Receptacle Housing.The mounting type of the device is Panel Mount.A Bulk case is used to package the product.A product of the HD10 Series, it belongs to the range of products of that series.In addition to its benefits, this part shares a number of advantages with other For Male Pins products.Using a Cable socket is required in order to mount the item.
HD10-6-12P Features
HD10 series
HD10-6-12P Applications
There are a lot of TE Connectivity Deutsch Connectors
HD10-6-12P Circular Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
