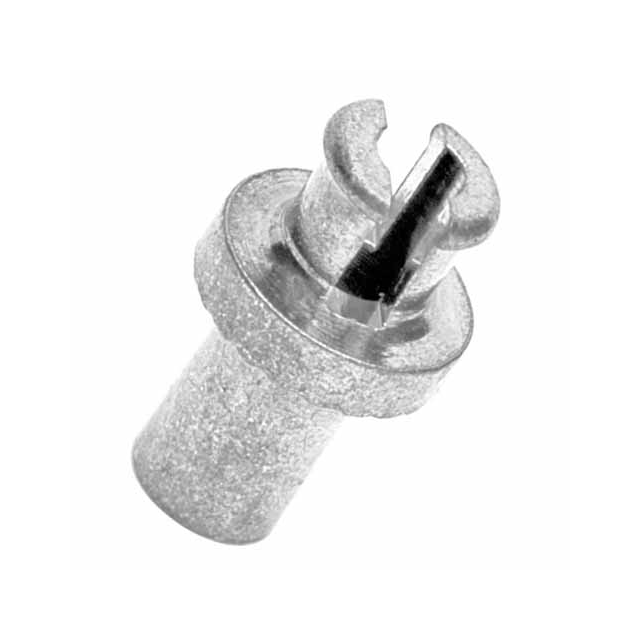

H2079-01
Or copy the link below:
- Mfr.Part #
- H2079-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET HOLLOW L=3.45MM TIN
- Stock
- 23,114
- In Stock ：
- 23,114
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Pbfree Code :
- yes
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Mounting Hole Diameter :
- 0.095 ~ 0.099 (2.42mm ~ 2.52mm)
- Flange Diameter :
- 0.156 (3.96mm)
- Board Thickness :
- 0.094 2.39mm
- HTS Code :
- 8536.90.40.00
- Mount :
- Through Hole
- Length - Below Flange :
- 0.130 3.30mm
- ECCN Code :
- EAR99
- Length :
- 6.731mm
- Contact Material :
- Brass Alloy
- Hole Diameter :
- 2.5146 mm
- Number of Turrets :
- Single
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Swage
- Factory Lead Time :
- 66 Weeks
- Mounting Type :
- Through Hole
- Published :
- 2001
- Terminal Type :
- Single End, Hollow
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Overall :
- 0.265 6.73mm
- Insulation :
- Non-Insulated
- Staking Side OD :
- 0.092 ~ 0.095 (2.34mm ~ 2.41mm)
- Staking Side ID :
- 0.052 ~ 0.055 (1.32mm ~ 1.40mm)
- Length - Above Board :
- 0.136 3.45mm
- Diameter - Turret Head :
- 0.107 (2.73mm)
- Datasheets
- H2079-01
H2079-01 datasheet pdf and Terminals - Turret Connectors product details from Harwin Inc. stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
