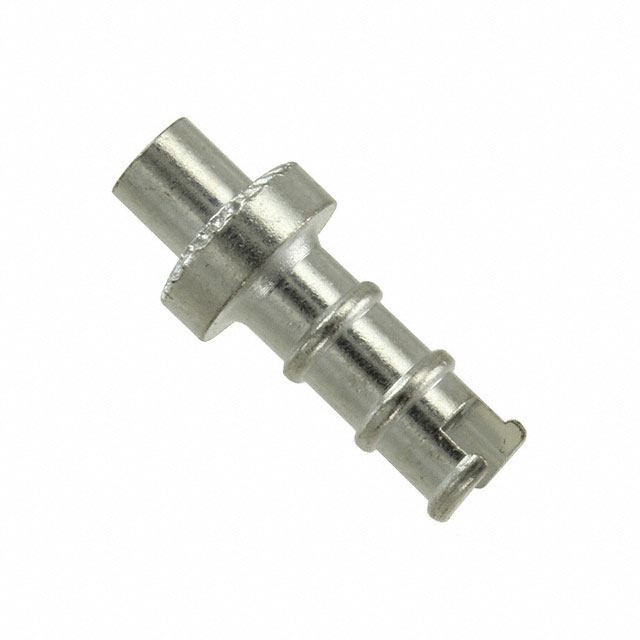

H2071ZS1
Or copy the link below:
- Mfr.Part #
- H2071ZS1
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SLOTTED L=9.12MM TIN
- Stock
- 4,792
- In Stock ：
- 4,792
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Length - Below Flange :
- 0.094 2.39mm
- Diameter - Turret Head :
- 0.125 (3.18mm)
- Hole Diameter :
- 2.7686 mm
- Length :
- 11.5062mm
- Terminal Type :
- Single End, Fork
- Pbfree Code :
- yes
- Factory Lead Time :
- 15 Weeks
- Number of Turrets :
- Triple
- Contact Finish :
- Tin
- Board Thickness :
- 0.063 1.60mm
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass Alloy
- Staking Side OD :
- 0.100 ~ 0.105 (2.54mm ~ 2.67mm)
- Termination :
- Swage
- Radiation Hardening :
- No
- Mount :
- Through Hole
- HTS Code :
- 8536.90.40.00
- Insulation :
- Non-Insulated
- Length - Overall :
- 0.453 11.51mm
- Mounting Hole Diameter :
- 0.105 ~ 0.109 (2.67mm ~ 2.77mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Mounting Type :
- Through Hole
- Published :
- 2005
- Flange Diameter :
- 0.187 (4.75mm)
- Length - Above Board :
- 0.359 9.12mm
- ECCN Code :
- EAR99
- Staking Side ID :
- 0.067 ~ 0.070 (1.70mm ~ 1.78mm)
- Datasheets
- H2071ZS1
H2071ZS1 Documents
H2071ZS1 datasheet pdf and Terminals - Turret Connectors product details from Harwin Inc. stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
