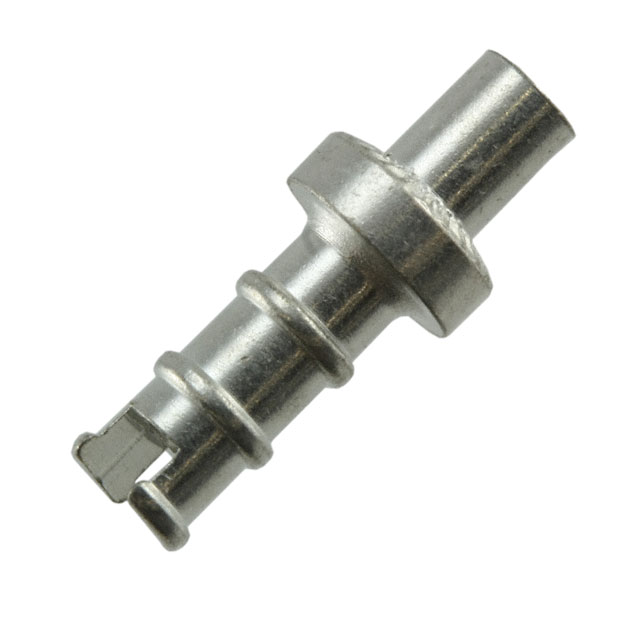

H2071Z01

Manufacturer :

Harwin

Product Category :

Turret Connectors

Depth :

4.75mm

Staking Side OD :

0.100 ~ 0.105 (2.54mm ~ 2.67mm)

Body Material :

Brass

Terminal and Terminal Block Type :

PCB TERMINAL

Length - Above Board :

0.359 9.12mm

Number of Turrets :

Triple

Length :

12.2936mm

Insulation :

Non-Insulated

Hole Diameter :

2.7686 mm

Length - Below Flange :

0.125 3.18mm

Outside Diameter :

4.75 mm

ECCN Code :

EAR99

Factory Lead Time :

9 Weeks

Board Thickness :

0.094 2.39mm

Contact Plating :

Tin

Gender :

FEMALE

Flange Diameter :

0.187 (4.75mm)

Contact Material :

Brass Alloy

Mount :

Through Hole

Staking Side ID :

0.067 ~ 0.070 (1.70mm ~ 1.78mm)

Published :

2001

HTS Code :

8536.69.40.40

Terminal Type :

Single End, Fork

Mounting Hole Diameter :

0.105 ~ 0.109 (2.67mm ~ 2.77mm)

Diameter - Turret Head :

0.125 (3.18mm)

Length - Overall :

0.484 12.29mm

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Termination :

Swage

Mounting Type :

Through Hole
