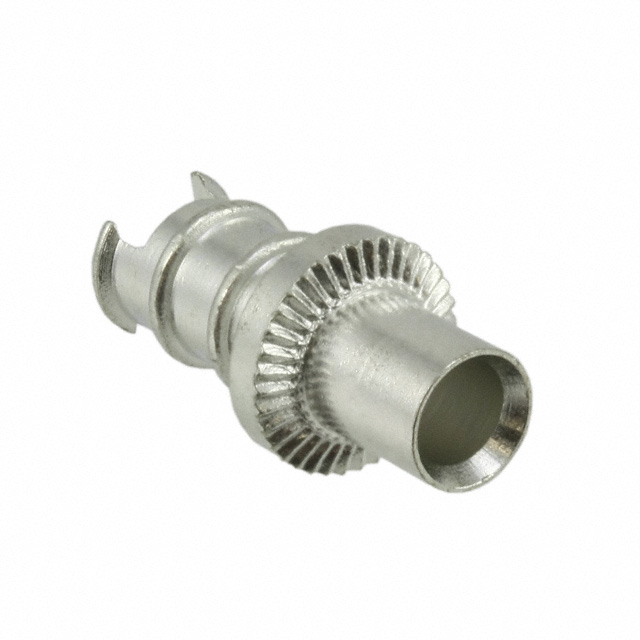

H2074Z01
Or copy the link below:
- Mfr.Part #
- H2074Z01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SLOTTED L=8.74MM TIN
- Stock
- 600
- In Stock ：
- 600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Insulation :
- Non-Insulated
- Length - Below Flange :
- 0.171 4.34mm
- Lead Length :
- 8.75mm
- Body Material :
- Brass
- Termination :
- Swage
- Outside Diameter :
- 6.35 mm
- Contact Material :
- Brass Alloy
- Wire Cross Section :
- 342.874 mm2
- Board Thickness :
- 0.126 3.20mm
- Contact Plating :
- Tin
- Factory Lead Time :
- 9 Weeks
- Mounting Hole Diameter :
- 0.155 ~ 0.159 (3.94mm ~ 4.04mm)
- Flange Diameter :
- 0.250 (6.35mm)
- HTS Code :
- 8536.90.40.00
- Staking Side ID :
- 0.109 ~ 0.112 (2.77mm ~ 2.85mm)
- Terminal Type :
- Single End, Fork
- Mounting Type :
- Through Hole
- REACH SVHC :
- No SVHC
- Mount :
- Through Hole
- Length - Overall :
- 0.515 13.08mm
- Published :
- 2001
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Hole Diameter :
- 4.0386 mm
- Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Turret
- Depth :
- 6.35mm
- Length :
- 13.081mm
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Diameter - Turret Head :
- 0.180 (4.57mm)
- Number of Turrets :
- Triple
- Length - Above Board :
- 0.344 8.74mm
- Pbfree Code :
- yes
- Staking Side OD :
- 0.152 ~ 0.154 (3.86mm ~ 3.92mm)
- Datasheets
- H2074Z01
