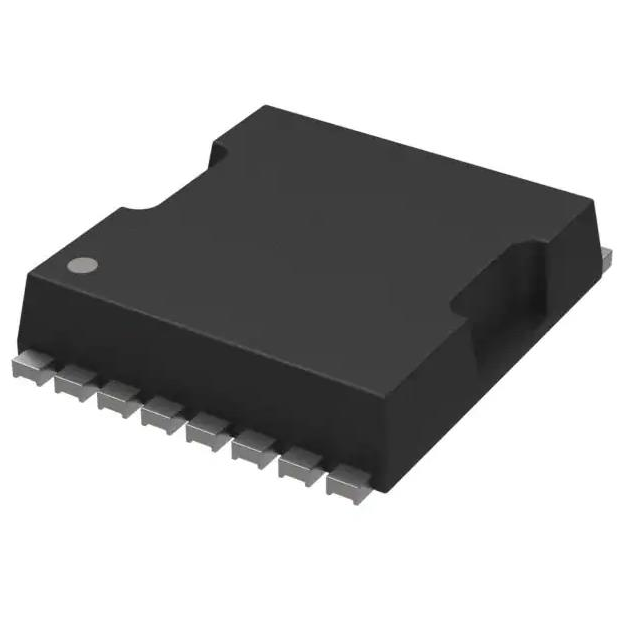

FDBL0120N40
Or copy the link below:
- Mfr.Part #
- FDBL0120N40
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- 8-PowerSFN
- Datasheet
- Download
- Description
- MOSFET N-CH 40V 240A 8HPSOF
- Stock
- 12,450
- In Stock ：
- 12,450
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Number of Pins :
- 8
- Mounting Type :
- Surface Mount
- JESD-609 Code :
- e3
- Vgs(th) (Max) @ Id :
- 4V @ 250µA
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Rds On (Max) @ Id, Vgs :
- 1.2m Ω @ 80A, 10V
- Drive Voltage (Max Rds On,Min Rds On) :
- 10V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Package / Case :
- 8-PowerSFN
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Input Capacitance (Ciss) (Max) @ Vds :
- 7735pF @ 25V
- Mount :
- Surface Mount
- Peak Reflow Temperature (Cel) :
- 245
- Weight :
- 850.0521mg
- Power Dissipation-Max :
- 300W Tj
- Gate Charge (Qg) (Max) @ Vgs :
- 107nC @ 10V
- Factory Lead Time :
- 8 Weeks
- Vgs (Max) :
- ±20V
- Series :
- PowerTrench®
- Terminal Finish :
- Tin (Sn)
- Drain to Source Voltage (Vdss) :
- 40V
- Operating Temperature :
- -55°C~175°C TJ
- Pbfree Code :
- yes
- Reach Compliance Code :
- not_compliant
- Current - Continuous Drain (Id) @ 25°C :
- 240A Tc
- FET Type :
- N-Channel
- Element Configuration :
- Single
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- ECCN Code :
- EAR99
- Continuous Drain Current (ID) :
- 240A
- Lead Free :
- Lead Free
- Datasheets
- FDBL0120N40
N-Channel Tape & Reel (TR) 1.2m Ω @ 80A, 10V ±20V 7735pF @ 25V 107nC @ 10V 40V 8-PowerSFN
FDBL0120N40 Overview
A device's maximum input capacitance is 7735pF @ 25V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.Its continuous drain current is 240A for this device. Drain current refers to the capacity of the device to conduct continuous current.To operate this transistor, you need to apply a 40V drain to source voltage (Vdss).This device uses no drive voltage (10V) to reduce its overall power consumption.
FDBL0120N40 Features
a continuous drain current (ID) of 240A
a 40V drain to source voltage (Vdss)
FDBL0120N40 Applications
There are a lot of ON Semiconductor
FDBL0120N40 applications of single MOSFETs transistors.
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
- DC-to-DC converters
