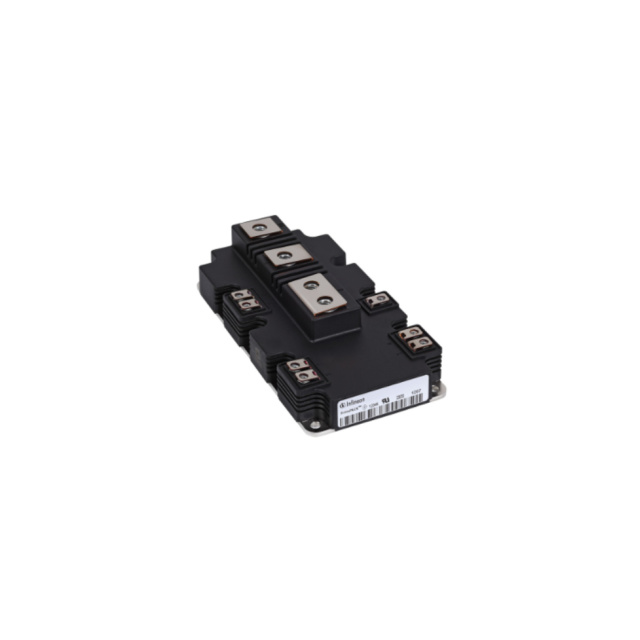

FD650R17IE4BOSA2

Manufacturer :

Infineon Technologies

Product Category :

Transistors - IGBTs - Modules

ECCN Code :

EAR99

Number of Terminations :

10

Transistor Application :

POWER CONTROL

Polarity/Channel Type :

N-Channel

RoHS Status :

ROHS3 Compliant

Vce(on) (Max) @ Vge, Ic :

2.45V @ 15V, 650A

Published :

2002

Operating Temperature :

-40°C~150°C

Pbfree Code :

No

NTC Thermistor :

yes

Case Connection :

Isolated

Series :

PrimePack™2

Configuration :

Single

Pin Count :

10

Qualification Status :

Not Qualified

Number of Elements :

1

Current - Collector (Ic) (Max) :

930A

JESD-30 Code :

R-XUFM-X10

Power - Max :

4150W

Input Capacitance (Cies) @ Vce :

54nF @ 25V

Turn On Time :

720 ns

Terminal Position :

UPPER

Voltage - Collector Emitter Breakdown (Max) :

1700V

Surface Mount :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Current - Collector Cutoff (Max) :

5mA

Terminal Form :

UNSPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Turn Off Time-Nom (toff) :

1870 ns

Package / Case :

Module

Mounting Type :

Chassis Mount

Input :

Standard

Factory Lead Time :

14 Weeks

Transistor Element Material :

SILICON
