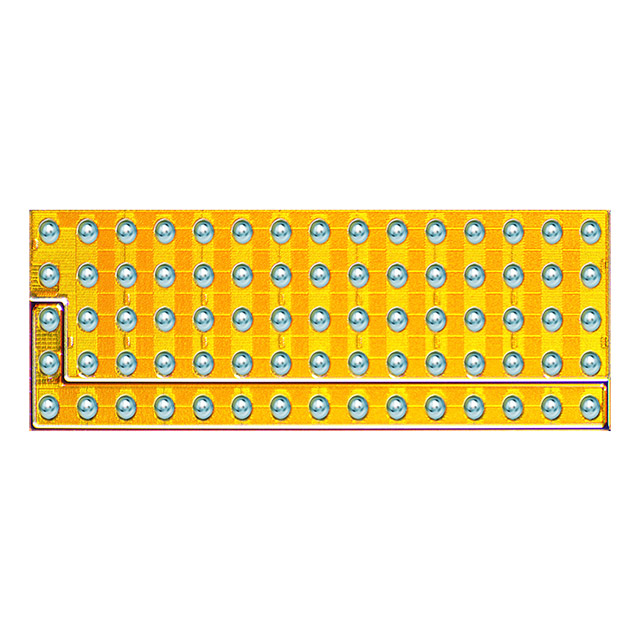

EPC2101
Or copy the link below:
- Mfr.Part #
- EPC2101
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GAN TRANS ASYMMETRICAL HALF BRID
- Stock
- 33
- In Stock ：
- 33
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Arrays
- FET Feature :
- GaNFET (Gallium Nitride)
- Drain to Source Voltage (Vdss) :
- 60V
- Input Capacitance (Ciss) (Max) @ Vds :
- 300pF @ 30V 1200pF @ 30V
- Mounting Type :
- Surface Mount
- FET Type :
- 2 N-Channel (Half Bridge)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Vgs(th) (Max) @ Id :
- 2.5V @ 3mA, 2.5V @ 12mA
- Rds On (Max) @ Id, Vgs :
- 11.5mOhm @ 20A, 5V, 2.7mOhm @ 20A, 5V
- Current - Continuous Drain (Id) @ 25°C :
- 9.5A 38A
- Supplier Device Package :
- Die
- Series :
- eGaN®
- Gate Charge (Qg) (Max) @ Vgs :
- 2.7nC @ 5V, 12nC @ 5V
- Package / Case :
- Die
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~150°C TJ
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 14 Weeks
- Datasheets
- EPC2101
EPC2101 datasheet pdf and Transistors - FETs, MOSFETs - Arrays product details from EPC stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
