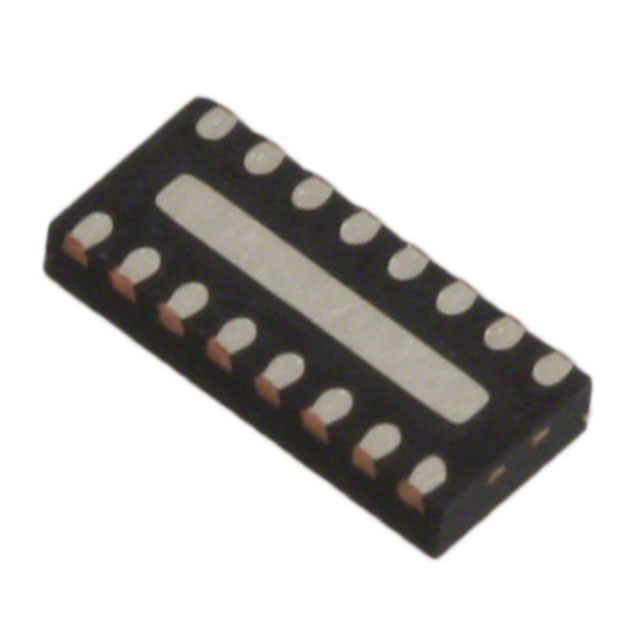

EMIF08-1005T16
Or copy the link below:
- Mfr.Part #
- EMIF08-1005T16
- Manufacturer
- STMicroelectronics
- Package / Case
- 16-UFDFN Exposed Pad
- Datasheet
- Download
- Description
- FILTER RC(PI) 100 OHM/9PF SMD
- Stock
- 22,457
- In Stock ：
- 22,457
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- EMI/RFI Filters (LC, RC Networks)
- Current Rating :
- 50mA
- ECCN Code :
- EAR99
- Resistance - Channel (Ω) :
- 100
- Size / Dimension :
- 0.130Lx0.053W 3.30mmx1.35mm
- Number of Pins :
- 16
- Depth :
- 1.4mm
- Termination :
- Flat
- RoHS Status :
- ROHS3 Compliant
- Number of Terminations :
- 16
- Filter Order :
- 2nd
- Height :
- 0.022 0.55mm
- Mount :
- Surface Mount
- Values :
- R = 100 Ω, C = 9pF (Total)
- Max Current Rating :
- 50mA
- Applications :
- Data Lines for Mobile Devices
- Breakdown Voltage :
- 8V
- Type :
- Low Pass
- Series :
- IPAD™
- Operating Temperature :
- -40°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Finish :
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Capacitance :
- 45pF
- JESD-609 Code :
- e4
- Radiation Hardening :
- No
- ESD Protection :
- yes
- Mounting Type :
- Surface Mount
- Number of Channels :
- 8
- Base Part Number :
- EMIF08
- Package / Case :
- 16-UFDFN Exposed Pad
- Packaging :
- Cut Tape (CT)
- Datasheets
- EMIF08-1005T16
EMIF08-1005T16 datasheet pdf and EMI/RFI Filters (LC, RC Networks) product details from STMicroelectronics stock available at
