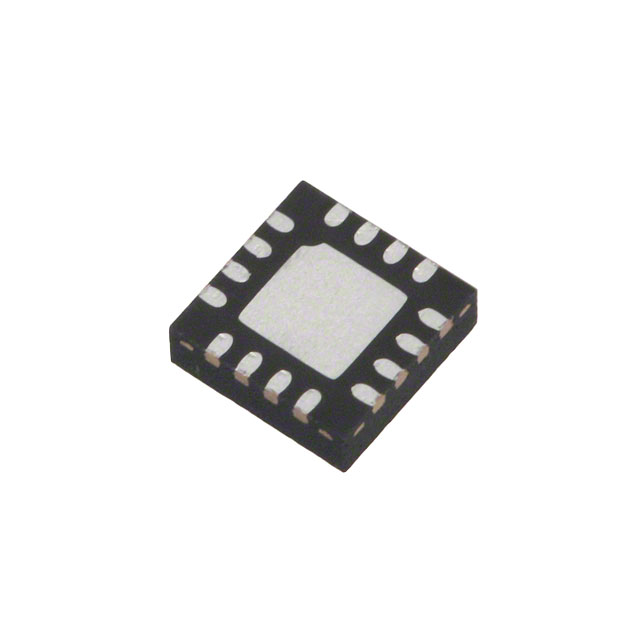

ECLAMP2357N.TCT

Manufacturer :

Semtech

Product Category :

EMI/RFI Filters (LC, RC Networks)

Number of Functions :

6

Packaging :

Tape and Reel (TR)

Base Part Number :

ECLAMP

Min Breakdown Voltage :

6V

Element Configuration :

Dual

Packing Method :

Tape and Reel

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Attenuation Value :

20dB @ 1GHz ~ 3GHz

Reverse Breakdown Voltage :

6V

Reverse Standoff Voltage :

5V

Series :

EClamp™

HTS Code :

8504.50.80.00

Number of Pins :

16

Size / Dimension :

0.118Lx0.118W 3.00mmx3.00mm

Lead Free :

Lead Free

Additional Feature :

PI-TYPE CIRCUIT

ESD Protection :

yes

Direction :

Unidirectional

DC Resistance (DCR) (Max) :

115Ohm

Type :

Low Pass

Thickness :

1mm

Values :

R = 100 Ω, C = 12pF

Number of Elements :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Reverse Leakage Current :

500nA

Test Current :

1mA

Terminal Finish :

Matte Tin (Sn)

Radiation Hardening :

No

Resistance - Channel (Ω) :

100

Applications :

Data Lines for Mobile Devices

JESD-609 Code :

e3

Package / Case :

16-QFN

Mount :

Surface Mount

Number of Channels :

6

Rated Voltage :

5V

REACH SVHC :

Unknown

Operating Temperature :

-40°C~85°C

Voltage - Rated DC :

5V

Leakage Current :

500nA

Height :

0.039 1.00mm

Number of Terminations :

16

ECCN Code :

EAR99

Approval Agency :

IEC

Mounting Type :

Surface Mount

Filter Order :

2nd

Operating Supply Voltage :

5V
