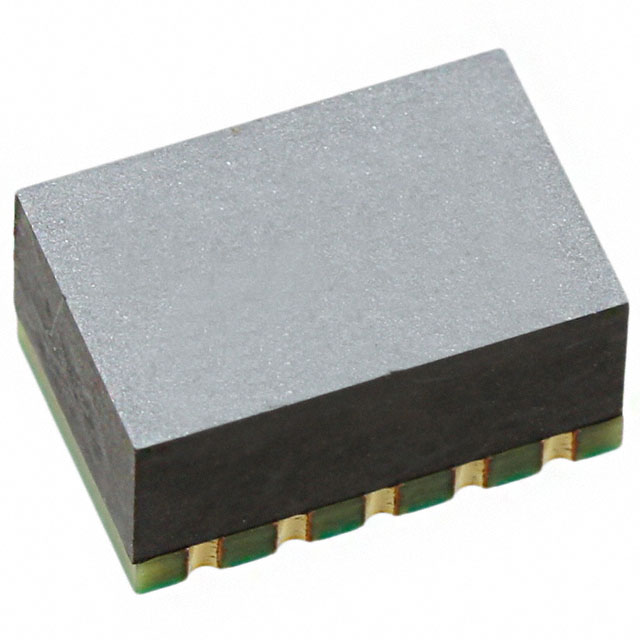

DOC050F-010.0M

Manufacturer :

Connor Winfield

Product Category :

Oscillators

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

DOC

Output :

LVCMOS

Packaging :

Tape and Reel (TR)

RoHS Status :

RoHS Compliant

Frequency Stability :

±50ppb

Package / Case :

6-SMD, No Lead

Qualification Status :

Not Qualified

Factory Lead Time :

12 Weeks

Voltage - Supply :

3.3V

Operating Temperature :

0°C~70°C

Supply Voltage :

3.3V

Number of Terminations :

6

Type :

OCXO

Operating Frequency :

10MHz

Input Power :

1.1W

Physical Dimension :

14.1mm x 9.1mm x 6.85mm

Warm-up Time-Max :

1.5Minute

Frequency :

10MHz

Additional Feature :

Tape and Reel

Mount :

Surface Mount

Mounting Type :

Surface Mount

Size / Dimension :

0.555Lx0.358W 14.10mmx9.10mm

Height :

6.858mm

Base Resonator :

Crystal

Height Seated (Max) :

0.307 7.80mm

Power Supplies :

3.3V

Warm-up Power :

2.5W
