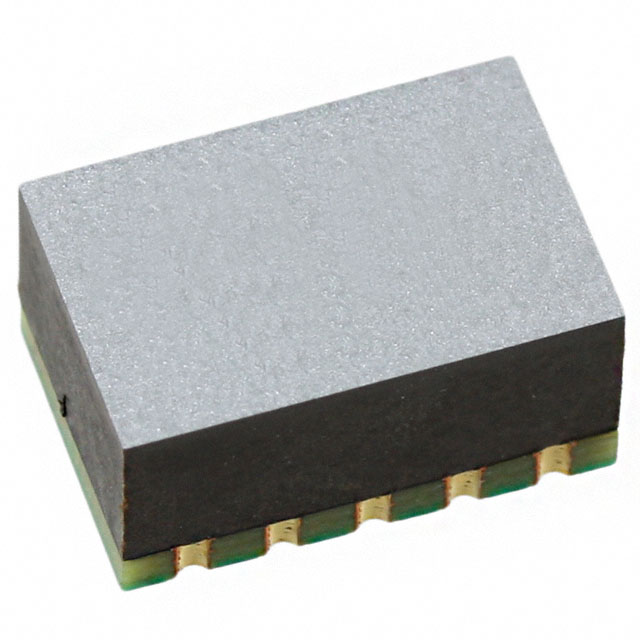

DOC020V-019.44M

Manufacturer :

Connor Winfield

Product Category :

Oscillators

Qualification Status :

Not Qualified

Mount :

Surface Mount

Height Seated (Max) :

0.307 7.80mm

Operating Frequency :

19.44MHz

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Height :

6.858mm

Physical Dimension :

14.1mm x 9.1mm x 6.85mm

Input Power :

1.1W

Output :

LVCMOS

Control Voltage-Max :

3V

Warm-up Power :

2.5W

RoHS Status :

RoHS Compliant

Frequency Stability :

±20ppb

Pbfree Code :

yes

Operating Temperature :

0°C~70°C

Power Supplies :

3.3V

Base Resonator :

Crystal

Type :

VCOCXO

Package / Case :

6-SMD, No Lead

Frequency :

19.44MHz

Number of Terminations :

6

Size / Dimension :

0.555Lx0.358W 14.10mmx9.10mm

Voltage - Supply :

3.3V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

Tape and Reel

Control Voltage-Min :

0.3V

Supply Voltage :

3.3V

Factory Lead Time :

12 Weeks

Warm-up Time-Max :

1.5Minute

Series :

DOC
